Melling CK-22206B Features:

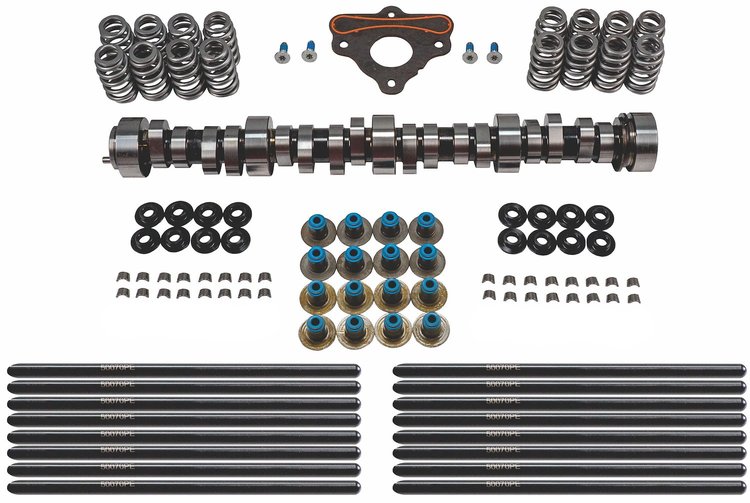

New Melling performance engine valve train components should always be part of a new performance camshaft installation. Melling Performance camshaft kits provide multiple camshaft and valve train combinations for performance engine applications. Melling performance camshaft kits include the camshaft, valve springs, valve spring retainers, valve locks, valve seals, thrust plate and pushrods. Available in dual or beehive spring types and standard or titanium spring material.

• (16) 500704 Push Rods
• (16) 475264 Chrome-Moly Steel Valve Spring Retainers
• (1) 22206 Camshaft
• (16) 466524 Valve Springs
• (16) VL-760 Valve Locks
• (16) 440034 Valve Stem Oil Seals
• (1) MF127 Camshaft Thrust Plate
• Assembly Lubricant Included: No
• Exhaust Duration at .050 inch Lift: 218 DD
• Grade Type: Performance
• Intake Duration at .050 Inch Lift: 212 DD
• Intake Valve Lift with Factory Rocker Arm Ratio: 0.553 in.
• Lifter Type: Hydraulic Roller
• Lobe Separation: 111 DD
• Rim Shape: Round
• Seal Color: Blue
• Seal Inside Diameter: 0.285 in.
• Seal Material: Steel
• Seal Outside Diameter: 0.625 in.
• Seal Thickness: 0.895 in.
• Seal Type: Umbrella
• Valve Seals Included: Yes
• Valve Springs Included: Yes
• Valve Springs Required: Yes

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
