Melling CK-22207B Features:

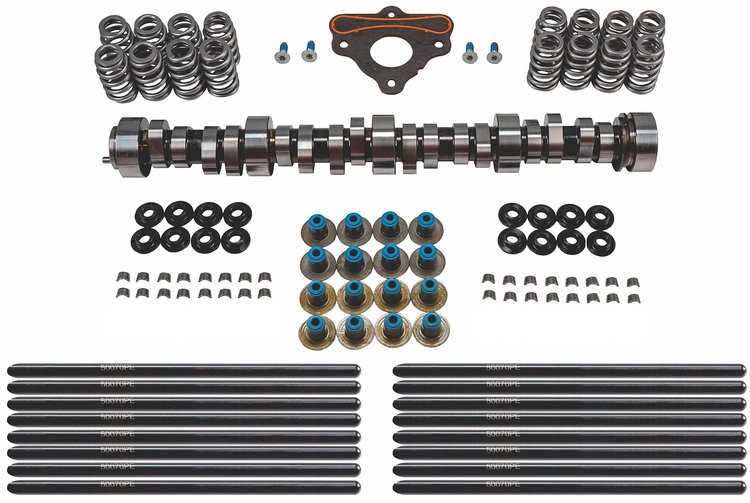

New Melling performance engine valve train components should always be part of a new performance camshaft installation. Melling Performance camshaft kits provide multiple camshaft and valve train combinations for performance engine applications. Melling performance camshaft kits include the camshaft, valve springs, valv e spring retainers, valve locks, valve seals, thrust plate and pushrods. Available in dual or beehive spring types and standard or titanium spring material.

• (16) 500704 Push Rods
• (16) 475264 Chrome-Moly Steel Valve Spring Retainers
• (1) 22207 Camshaft
• (16) 461219 Valve Springs
• (16) VL-760 Valve Locks
• (16) 440034 Valve Stem Oil Seals
• (1) MF127 Camshaft Thrust Plate
• Assembly Lubricant Included: No
• Camshaft Material: Billet Steel
• Exhaust Duration at .050 inch Lift: 218 DD
• Grade Type: Performance
• Intake Duration at .050 Inch Lift: 212 DD
• Intake Valve Lift with Factory Rocker Arm Ratio: 0.604 in.
• Lifter Type: Hydraulic Roller
• Rim Shape: Round
• Seal Color: Blue
• Seal Inside Diameter: 0.285 in.
• Seal Material: Steel
• Seal Outside Diameter: 0.625 in.
• Seal Thickness: 0.895 in.
• Seal Type: Hat
• Valve Seals Included: Yes
• Valve Springs Included: Yes
• Valve Springs Required: Yes

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
