Melling CK-22412B Features:

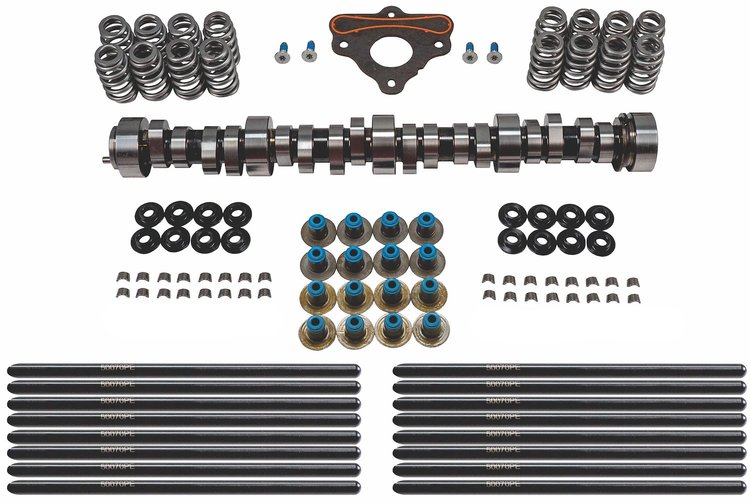

New Melling performance engine valve train components should always be part of a new performance camshaft installation. Melling Performance camshaft kits provide multiple camshaft and valve train combinations for performance engine applications. Melling performance camshaft kits include the camshaft, valve springs, valve spring retainers, valve locks, valve seals, thrust plate and pushrods. Available in dual or beehive spring types and standard or titanium spring material.

• (1) 22412 Camshaft
• (16) 500704 Push Rods
• (1) MF127 Camshaft Thrust Plate
• (16) VL-760 Valve Locks
• (16) 475264 Chrome-Moly Steel Valve Spring Retainers
• (16) 461219 Valve Springs
• (16) 440034 Valve Stem Oil Seals
• Assembly Lubricant Included: No
• Basic Operating RPM Range: 2000
• Basic Operating RPM Range: 6500
• Camshaft Material: Billet Steel
• Exhaust Duration at .050 inch Lift: 246 DD
• Grade Type: Performance
• Intake Duration at .050 Inch Lift: 236 DD
• Lifter Type: Hydraulic Roller
• Lobe Separation: 110 DD
• Seal Inside Diameter: 0.285 in.
• Seal Material: Steel
• Seal Outside Diameter: 0.625 in.
• Seal Thickness: 0.895 in.
• Seal Type: Hat
• Valve Seals Included: Yes
• Valve Springs Included: Yes
• Valve Springs Required: Yes

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
