Vehicle Info NeededMELLINGPART NUMBER: 689-CSL2248

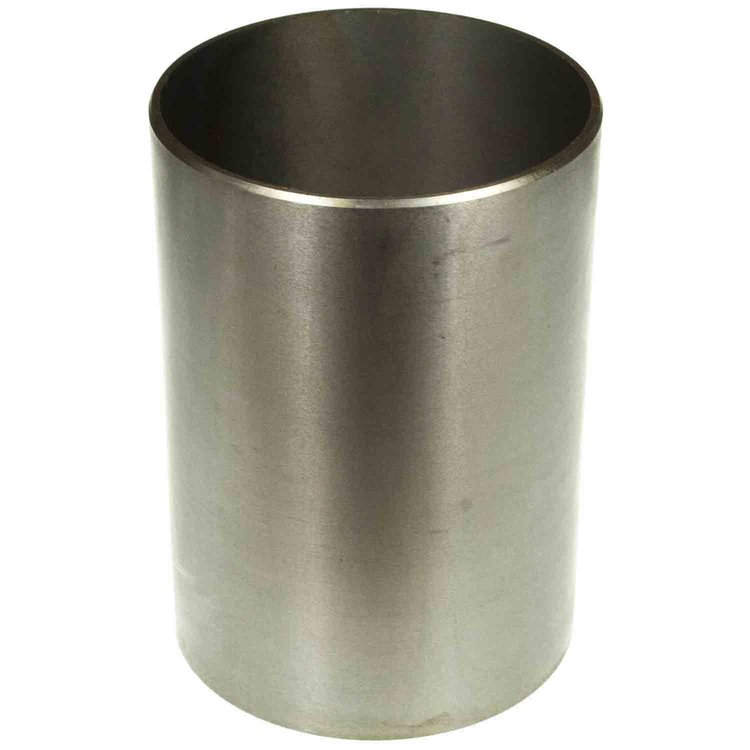

CSL2248 Cylinder Sleeve Bore: 3.6875"
$2999
More than 10 available
Ships Tomorrow
Lowest Price Guarantee1/8" Wall Thickness
Cylinder Sleeve Bore: 3.6875" Length: 7-9/16" Wall Thickness: 1/8"
MELLING AUTOMOTIVE PROD CSL2248 Features:
Melling replacement cylinder liners provide an efficient and economical way to replace the cylinder sleeves needed for a quality engine rebuild. Melling cylinder liners are manufactured using the highest design capabilities, quality materials and workmanship. Melling cylinder liners are manufactured in both stock replacement and high performance brands and are available in universal flanged, finished, heavy duty and custom sized.Melling Cylinder Sleeves are made from centrifugal cast iron to tolerances as small as one half of one-thousandth of an inch using modern CNC equipment. The centerless OD grinding process results with a part that is exact to size specifications and is perfectly round. The material used machines easily with strength and durability similar to that of ductile iron.
Note: Bore dimension = Inside Diameter (I.D.)
Part TypeCylinder Sleeve
Product LineMelling Cylinder Sleeves
BrandMELLING
Package Height4.2
Package Width4.3
Package Length7.562 in.
Weight3.5 PG
Part CategoryReplacement Parts
Thickness0.125 in.
Universal Or Specific FitUniversal
Liner Outside Diameter3.94 in.
Liner Inside Diameter3.657 in.
FlangedNo
Cylinder Bore Diameter3.688 in.
MaterialCast Iron
Part FitmentSemi Universal
Grade TypeStandard Replacement
Vendor Part NumberCSL2248
Package Qty1
Package TypeEA
