Vehicle Info NeededMELLINGPART NUMBER: 689-CSL301F

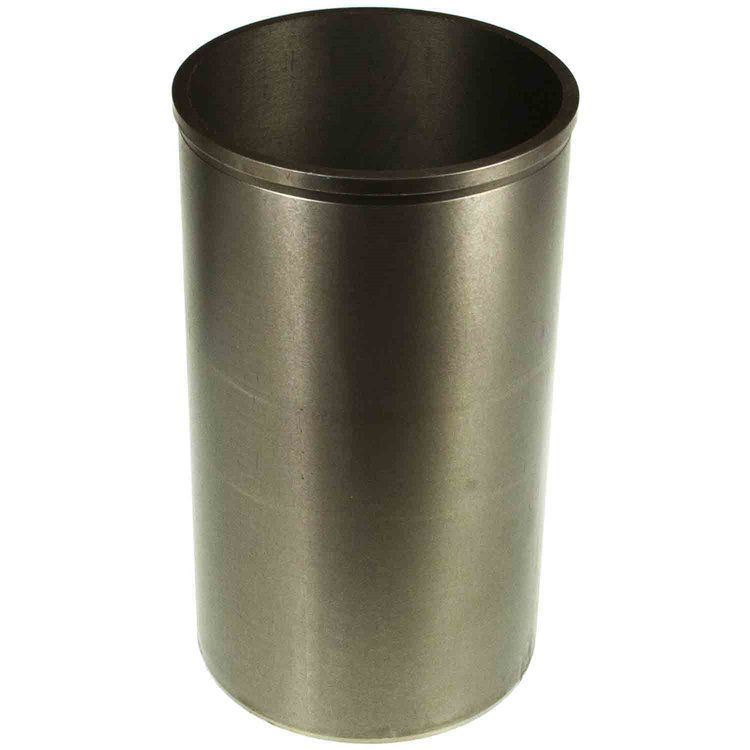

CSL301F Cylinder Sleeve Bore: 3.1875"
$5961
Ships on 09/09/2026
Lowest Price Guarantee1/8" Wall Thickness
Cylinder Sleeve Bore: 3.1875" Length: 6-1/2" Flanged Wall: .040"
MELLING AUTOMOTIVE PROD CSL301F Features:
Made In USA. Melling replacement cylinder liners provide an efficient and economical way to replace the cylinder sleeves needed for a quality engine rebuild. Melling cylinder liners are manufactured using the highest design capabilities, quality materials and workmanship. Melling cylinder liners are manufactured in both stock replacement and high performance brands and are available in universal flanged, finished, heavy duty and custom sized.Melling Cylinder Sleeves are made from centrifugal cast iron to tolerances as small as one half of one-thousandth of an inch using modern CNC equipment. The centerless OD grinding process results with a part that is exact to size specifications and is perfectly round. The material used machines easily with strength and durability similar to that of ductile iron.
Note: Bore dimension = Inside Diameter (I.D.)
Part TypeCylinder Sleeve
Product LineMelling Cylinder Sleeves
BrandMELLING
Package Length6.5 in.
Part CategoryReplacement Parts
Thickness0.04 in.
Universal Or Specific FitUniversal
Liner Outside Diameter3.345 in.
Liner Inside Diameter3.188 in.
FlangedYes
Cylinder Bore Diameter3.188 in.
MaterialCast Iron
Flange Thickness0.051 in.
Part FitmentSemi Universal
Grade TypeStandard Replacement
Vendor Part NumberCSL301F
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
