Vehicle Info NeededMELLINGPART NUMBER: 689-CSL506A.015

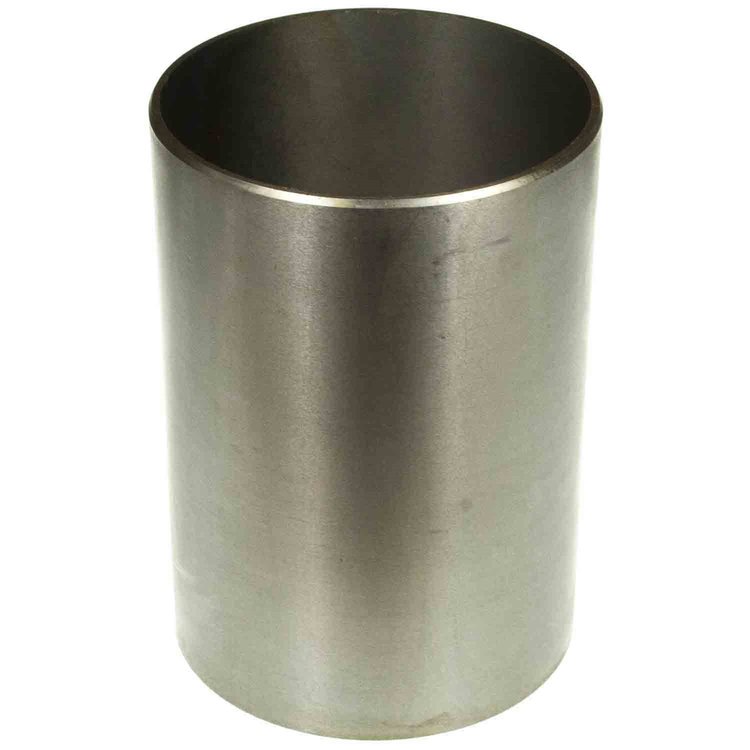

CSL506A.015 Stock Replacemet Engine Cylinder Liner
$6064
Ships on 09/14/2026
Lowest Price Guarantee- Stock Replacemet Engine Cylinder Liner
- Cylinder Bore Diameter: 3.188 in.
- Cylinder Bore Diameter: 81.0 mm
- Flanged: No
- Grade Type: Regular
- Length: 9.25 in.
Melling CSL506A.015 Features:
Melling replacement cylinder liners provide an efficient and economical way to replace the cylinder sleeves needed for a quality engine rebuild. Melling cylinder liners are manufactured using the highest design capabilities, quality materials and workmanship. Melling cylinder liners are manufactured in both stock replacement and high performance brands and are available in universal flanged, finished, heavy duty and custom sized.
- Length: 235.0 mm
- Liner Inside Diameter: 3.157 in.
- Liner Inside Diameter: 80.0 mm
- Liner Outside Diameter: 3.455 in.
- Liner Outside Diameter: 88.0 mm
- Material: Cast Iron
- Thickness: 0.14 in.
- Thickness: 4.0 mm
- Universal Or Specific Fit: Universal
Part TypeCylinder Sleeve
BrandMELLING
Package Length9.25 in.
Part CategoryReplacement Parts
Thickness0.14 in.
Universal Or Specific FitUniversal
Liner Outside Diameter3.455 in.
Liner Inside Diameter3.157 in.
FlangedNo
Cylinder Bore Diameter3.188 in.
MaterialCast Iron
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part NumberCSL506A.015
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
