Vehicle Info NeededMELLINGPART NUMBER: 689-CSL522A.015

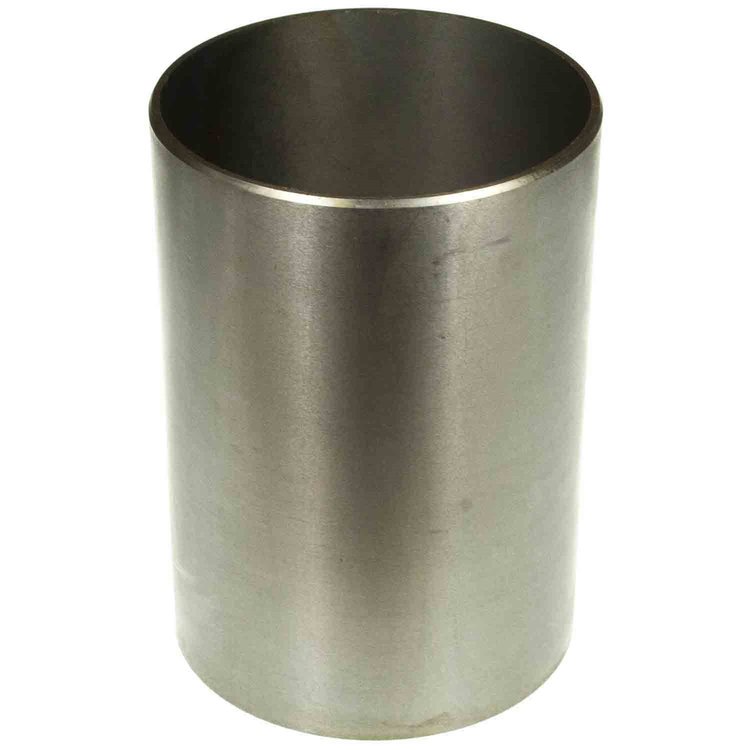

CSL522A.015 Stock Replacemet Engine Cylinder Liner
$6038
Ships on Sep 03, 2026
Lowest Price Guarantee- Stock Replacemet Engine Cylinder Liner
- Cylinder Bore Diameter: 4.5 in.
- Cylinder Bore Diameter: 114.0 mm
- Flanged: No
- Grade Type: Regular
- Length: 12.25 in.
Melling CSL522A.015 Features:
Melling replacement cylinder liners provide an efficient and economical way to replace the cylinder sleeves needed for a quality engine rebuild. Melling cylinder liners are manufactured using the highest design capabilities, quality materials and workmanship. Melling cylinder liners are manufactured in both stock replacement and high performance brands and are available in universal flanged, finished, heavy duty and custom sized.
- Length: 311.0 mm
- Liner Inside Diameter: 4.47 in.
- Liner Inside Diameter: 114.0 mm
- Liner Outside Diameter: 4.768 in.
- Liner Outside Diameter: 121.0 mm
- Material: Cast Iron
- Thickness: 0.141 in.
- Thickness: 4.0 mm
- Universal Or Specific Fit: Universal
Part TypeCylinder Sleeve
BrandMELLING
Package Length12.25 in.
Part CategoryReplacement Parts
Thickness0.141 in.
Universal Or Specific FitUniversal
Liner Outside Diameter4.768 in.
Liner Inside Diameter4.47 in.
FlangedNo
Cylinder Bore Diameter4.5 in.
MaterialCast Iron
Part FitmentDirect Fit
Grade TypeStandard Replacement
Vendor Part NumberCSL522A.015
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
