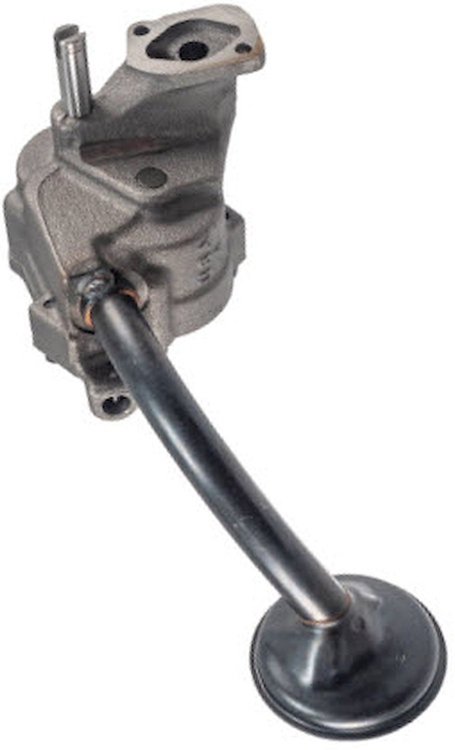

M-77HV-353SW High Volume Oil Pump and Screen Assembly 1991-2009 Chevy/GMC 6.0L, 7.0L, 7.4L, and 8.1L V8
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-M-77HV-353SW

M-77HV-353SW High Volume Oil Pump and Screen Assembly 1991-2009 Chevy/GMC 6.0L, 7.0L, 7.4L, and 8.1L V8

$12599
ShippingShips on 11/23/2026
Lowest PriceLowest Price Guarantee

Items You Need

Oil Pan Gasket Set

FEL-PRO

Oil Pan Gasket Set

Part Number : 375-OS30714R
$3299
Drain Pan [7 Quart]

JEGS

Drain Pan [7 Quart]

Part Number : 555-W4070
$499$5.99
You Save$1.00
Copper Oil Pump Gasket for Big Block Chevy V8

JEGS

Copper Oil Pump Gasket for Big Block Chevy V8

Part Number : 555-23623
$599$6.99
You Save$1.00
High-Strength Oil Pump Shaft Big Block Chevy (Gen IV/V/VI with Standard Deck)

JEGS

High-Strength Oil Pump Shaft Big Block Chevy (Gen IV/V/VI with Standard Deck)

Part Number : 555-23651
$1199$13.99
You Save$2.00

GM/Chevy Big Block
Oil Pump and Screen Assembly
  • 1991-2009 Chevy/GMC 6.0L, 7.0L, 7.4L, 8.1L V8
  • High Volume / Standard Pressure
  • Cast Iron Construction
  • Sold Individually

    Features:

    • 25% More Volume than Stock Pump for Better Oil Flow
    • Spur Gear
    • Drive Shaft Driven
    • Tested for Ultimate Flow and Pressure in Extreme Conditions
    • Precision Ground End Plates for Ultimate Wear Resistance
    • Stock and High-Volume Oil Pumps

      Melling offers a variety of OE replacement and high-volume oil pumps to improve your engine's performance. All units are 100-percent pressure tested and hand-turned before shipping to ensure quality and durability.

    Part TypeOil Pump
    Product LineMelling OE-Style Oil Pumps & Pickups
    BrandMELLING
    Package Height5.1
    Package Width6.3
    Package Length11.0
    Weight5.72 PG
    Part CategoryReplacement Parts
    Drive Shaft IncludedNo
    Housing MaterialCast Iron
    Mounting Hole Quantity2
    Adjustable Bypass PressureNo
    Bolts IncludedNo
    Spacer IncludedNo
    Alternate Pressure Springs IncludedNo
    Inlet Size (In.)0.750
    O-Ring IncludedNo
    Washers IncludedNo
    Mounting Hole Diameter0.25 in.
    Oil Pump Pressure TypeHigh Pressure
    Bushing IncludedNo
    Oil Pump TypeGear
    Cover MaterialCast Iron
    Shaft MaterialNot Applicable
    Product Height4.51 in.
    Gear MaterialSteel
    Product Width4.5 in.
    Pickup Tube Diameter0.75 in.
    FinishRust Preventative
    Gasket Or Seal IncludedNo
    Cotter Pin IncludedNo
    Gear TypeSpur Gear
    Drive TypeDrive Shaft
    Oil Pump Volume TypeHigh Volume
    Part FitmentDirect Fit
    Grade TypeImproved Design
    Timing Cover IncludedNo
    Additional Volume Over Stock Percentage25%
    Vendor Part NumberM-77HV-353SW
    Package Qty1
    Package TypeEA
