Made in USA
M-87 Stock Replacement Oil Pump
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-M-87

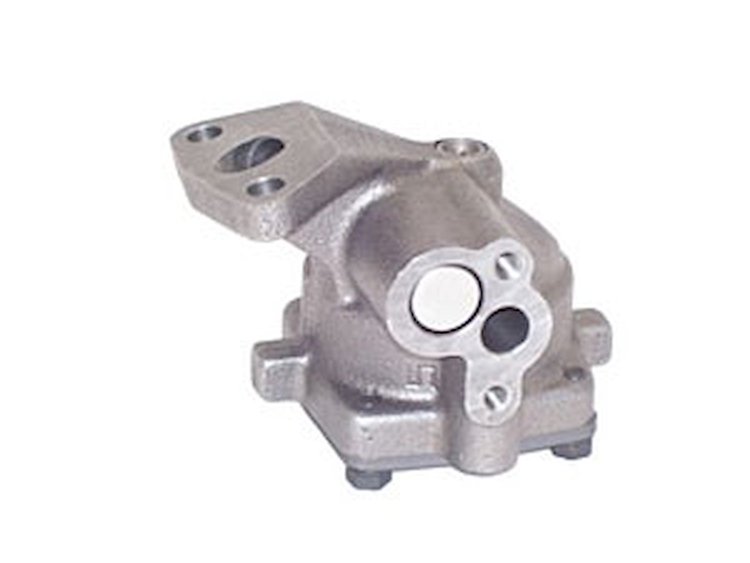

M-87 Stock Replacement Oil Pump

$12299
ShippingShips on Sep 02, 2026
Lowest PriceLowest Price Guarantee

    Stock Replacement Oil Pump
  • Drive Type: Drive Shaft
  • Gasket Or Seal Included: Yes
  • Grade Type: Regular
  • Height: 2.99 in.
  • Height: 76.0 mm

    Melling M-87 Features:

    Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Housing Material: Cast Iron
  • Mounting Hole Diameter: 0.315 in.
  • Mounting Hole Diameter: 8.0 mm
  • Mounting Hole Quantity: 2
  • Oil Pump Pressure Type: Standard Pressure
  • Oil Pump Type: Gear
  • Oil Pump Volume Type: Standard Volume
  • Pickup Screen Diameter: 0.43 in.
  • Pickup Screen Diameter: 11.0 mm
  • Width: 3.58 in.
  • Width: 91.0 mm
Part TypeOil Pump
BrandMELLING
Package Height2.99 in.
Package Width3.58 in.
Weight3.38 PG
Part CategoryReplacement Parts
Drive Shaft IncludedNo
Housing MaterialCast Iron
Mounting Hole Quantity2
Adjustable Bypass PressureNo
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedNo
Inlet Size (In.)0.430
O-Ring IncludedNo
Washers IncludedNo
Pickup Screen Diameter0.43 in.
Mounting Hole Diameter0.315 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialCast Iron
Shaft MaterialNot Applicable
Gear MaterialSteel
Pickup Tube Diameter0.430 in.
FinishRust Preventative
Gasket Or Seal IncludedYes
Cotter Pin IncludedNo
Drive TypeDrive Shaft
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypeStandard Replacement
Timing Cover IncludedNo
Vendor Part NumberOIL PUMP
Package Qty1
Package TypeEA
