M118S Stock Replacement Oil Pump With Screen
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-M118S

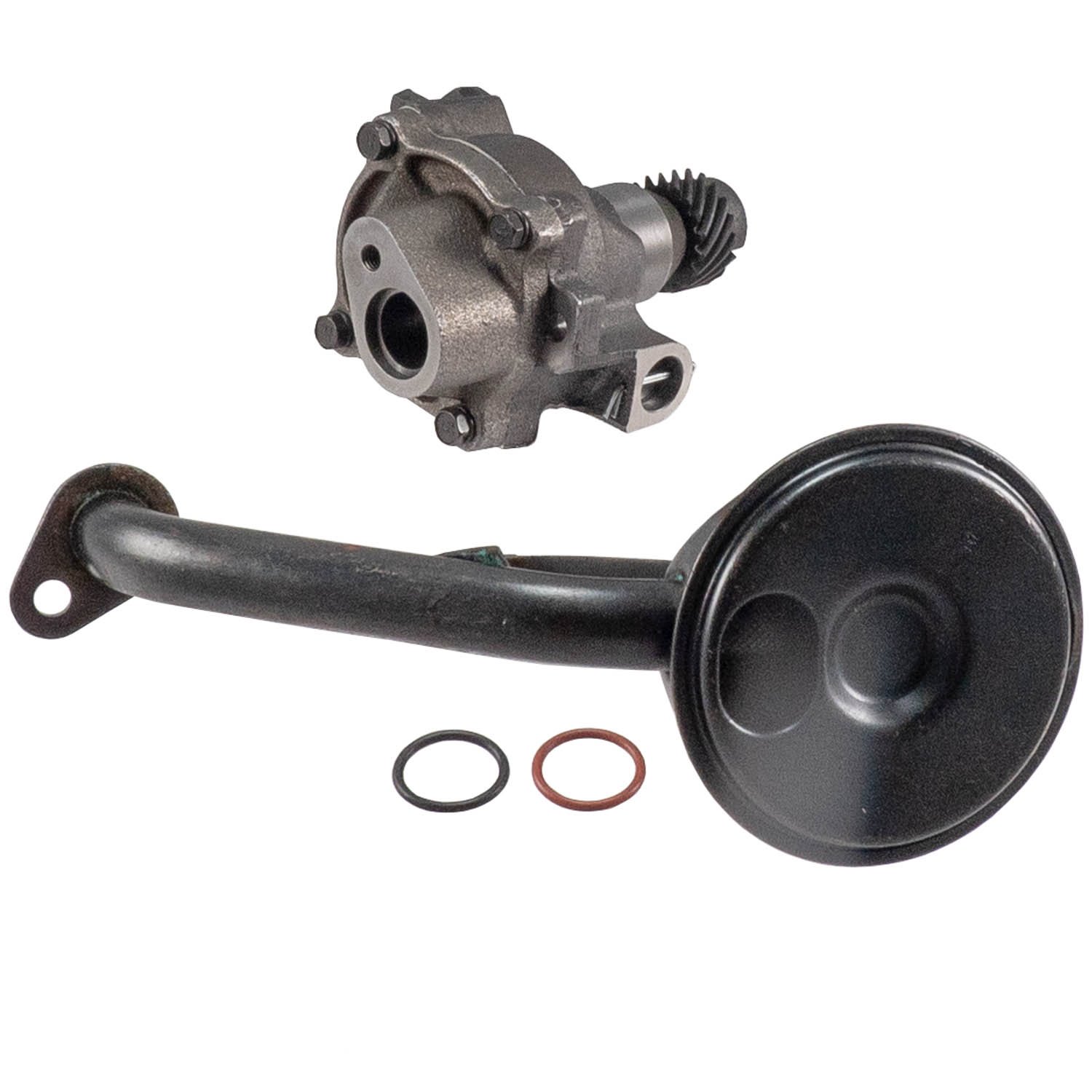

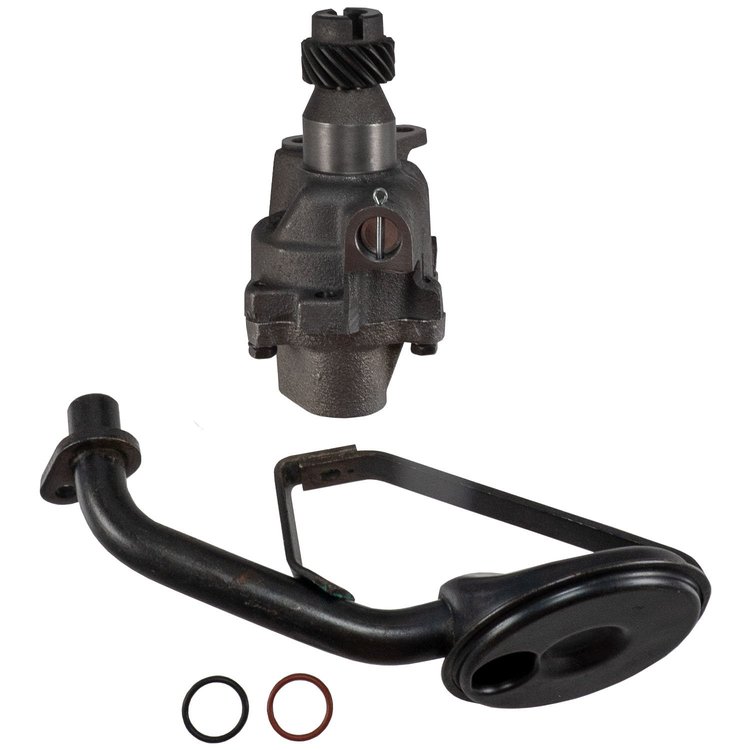

M118S Stock Replacement Oil Pump With Screen

$13420
3 left in stock
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

    Stock Replacement Oil Pump With Screen
  • Additional Cover Shaft Support: No
  • Adjustable Bypass Pressure: No
  • Alternate Pressure Springs Included: No
  • Anti-Cavitation: No
  • Drive Shaft Included: No

    Melling M118S Features:

    Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Gasket Or Seal Included: Yes
  • Grade Type: Regular
  • Height: 5.885 in.
  • Height: 149.0 mm
  • Housing Material: Cast Iron
  • Mounting Hole Diameter: 2.5 in.
  • Mounting Hole Diameter: 6.0 mm
  • Oil Pump Pressure Type: Standard Pressure
  • Oil Pump Type: Gear
  • Oil Pump Volume Type: Standard Volume
  • Width: 5.115 in.
  • Width: 130.0 mm
Part TypeOil Pump
BrandMELLING
Package Height5.885 in.
Package Width5.115 in.
Weight6.1 PG
Part CategoryReplacement Parts
Drive Shaft IncludedNo
Housing MaterialCast Iron
Mounting Hole Quantity2
Adjustable Bypass PressureNo
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedNo
Anti-CavitationNo
Inlet Size (In.)0.800
O-Ring IncludedYes
Washers IncludedNo
Mounting Hole Diameter2.5 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialCast Iron
Shaft MaterialNot Applicable
Gear MaterialSteel
Pickup Tube Diameter0.800 in.
FinishRust Preventative
Gasket Or Seal IncludedYes
Cotter Pin IncludedNo
Drive TypeDrive Shaft
Additional Cover Shaft SupportNo
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypeStandard Replacement
Timing Cover IncludedNo
Vendor Part NumberM118S
Package Qty1
Package TypeEA
