Vehicle Info NeededMELLINGPART NUMBER: 689-M255-295S

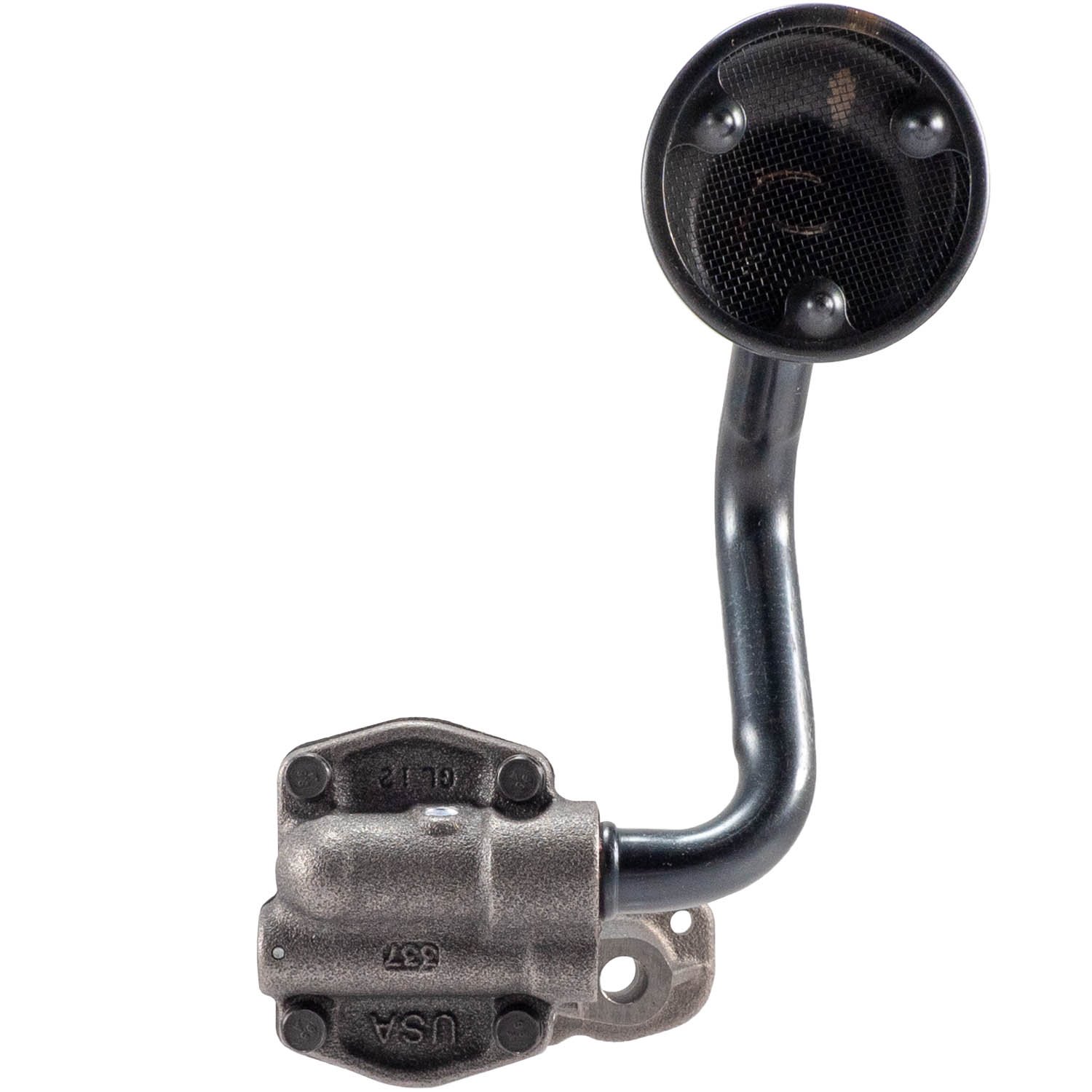

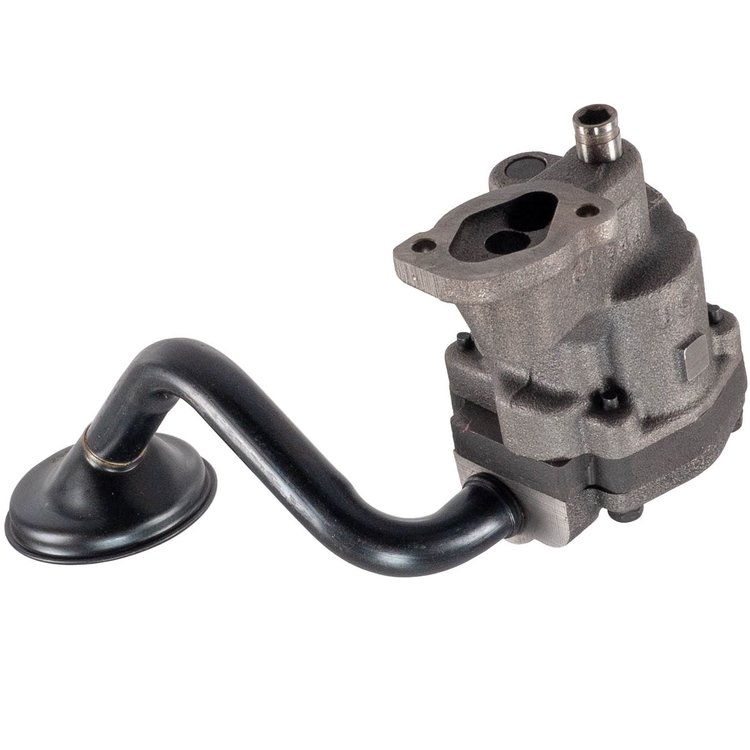

M255-295S Oil Pump/Screen Assembly 1996-2001 AM General Humvee (Hummer) 6.5L Diesel w/Deep Oil Pan
$10799
7 left in stock
Ships Tomorrow
Lowest Price GuaranteeAM General
- Oil Pump/Screen Assembly
- 1996-2001 AM General Humvee (Hummer) 6.5L Diesel
- For Military Grade Engines w/Deep Oil Pan
- Standard Pressure
- Standard Volume
- Cast Iron Housing
- Sold Individually
For Military Grade Engines Only - Should Not Be Used with Standard Grade Engine
Part TypeOil Pump
BrandMELLING
Package Height4.67 in.
Package Width3.25 in.
Package Length11.0
Weight5.68 PG
Part CategoryReplacement Parts
Drive Shaft IncludedNo
Housing MaterialCast Iron
Mounting Hole Quantity2
Adjustable Bypass PressureNo
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedNo
Anti-CavitationNo
Inlet Size (In.)0.838
O-Ring IncludedNo
Washers IncludedNo
Mounting Hole Diameter0.25 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialCast Iron
Shaft MaterialNot Applicable
Gear MaterialPowdered Metal
Pickup Tube Diameter0.838 in.
FinishRust Preventative
Adjustable Pickup ScreenNo
Gasket Or Seal IncludedNo
Cotter Pin IncludedNo
Drive TypeDrive Shaft
Additional Cover Shaft SupportNo
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypeStandard Replacement
Timing Cover IncludedNo
Vendor Part NumberM255-295S
Package Qty1
Package TypeEA
