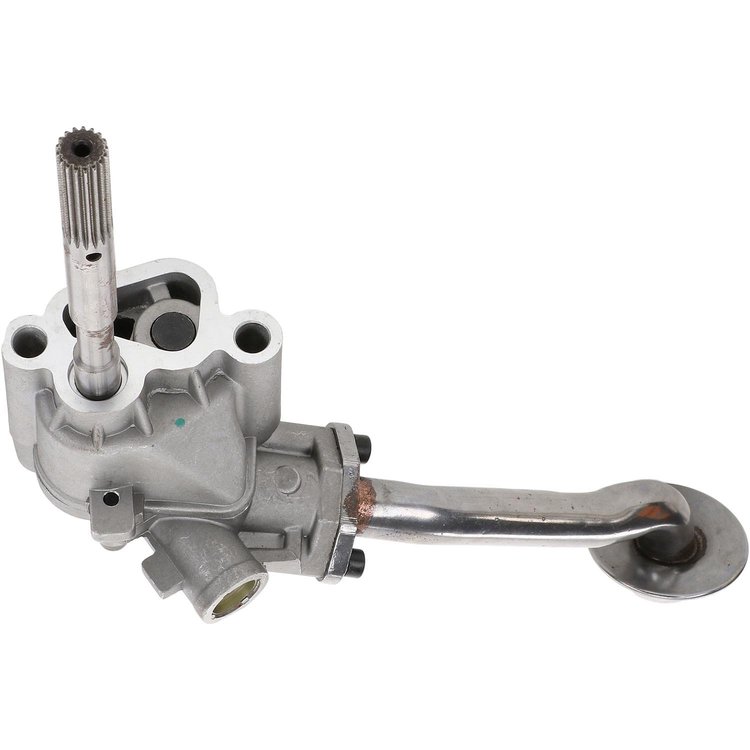

Melling M366 Features:

Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

• Precision engineered for optimum fit and function
• Manufactured from high quality materials for consistent durable wear
• Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
• Designed for long-life and worry-free performance
• Meets or exceeds original equipment specifications
• Width: 2.75 in.
• Height: 11.75 in.
• Gasket Or Seal Included: No
• Mounting Hole Quantity: 2
• Housing Material: Cast Iron
• Drive Type: Drive Shaft
• Mounting Hole Diameter: 0.375 in.
• Gear Material: Steel
• Grade Type: Standard Replacement
• Oil Pump Type: Gear
• Pickup Tube Diameter: 0.787 in.
• Drive Shaft Included: No
• Adjustable Bypass Pressure: No
• Alternate Pressure Springs Included: No
• Oil Pump Pressure Type: Standard Pressure
• Oil Pump Volume Type: Standard Volume
• Bolts Included: No
• Bushing Included: No
• Cotter Pin Included: No
• Cover Material: Cast Iron
• Finish: Rust Preventative
• Gears Included: Yes
• Governor Spinner Included: No
• Guide Included: No
• Inlet Size (in): 0.787
• Intermediate Shaft Included: No
• Nylon Bushing Included: No
• O-Ring Included: No
• Pickup Screen Included: Yes
• Pump Cover Included: Yes
• Shaft Material: Not Applicable
• Spacer Included: No
• Timing Cover Included: No
• Washers Included: No
