Melling M390-396S Features:

Made in USA. Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

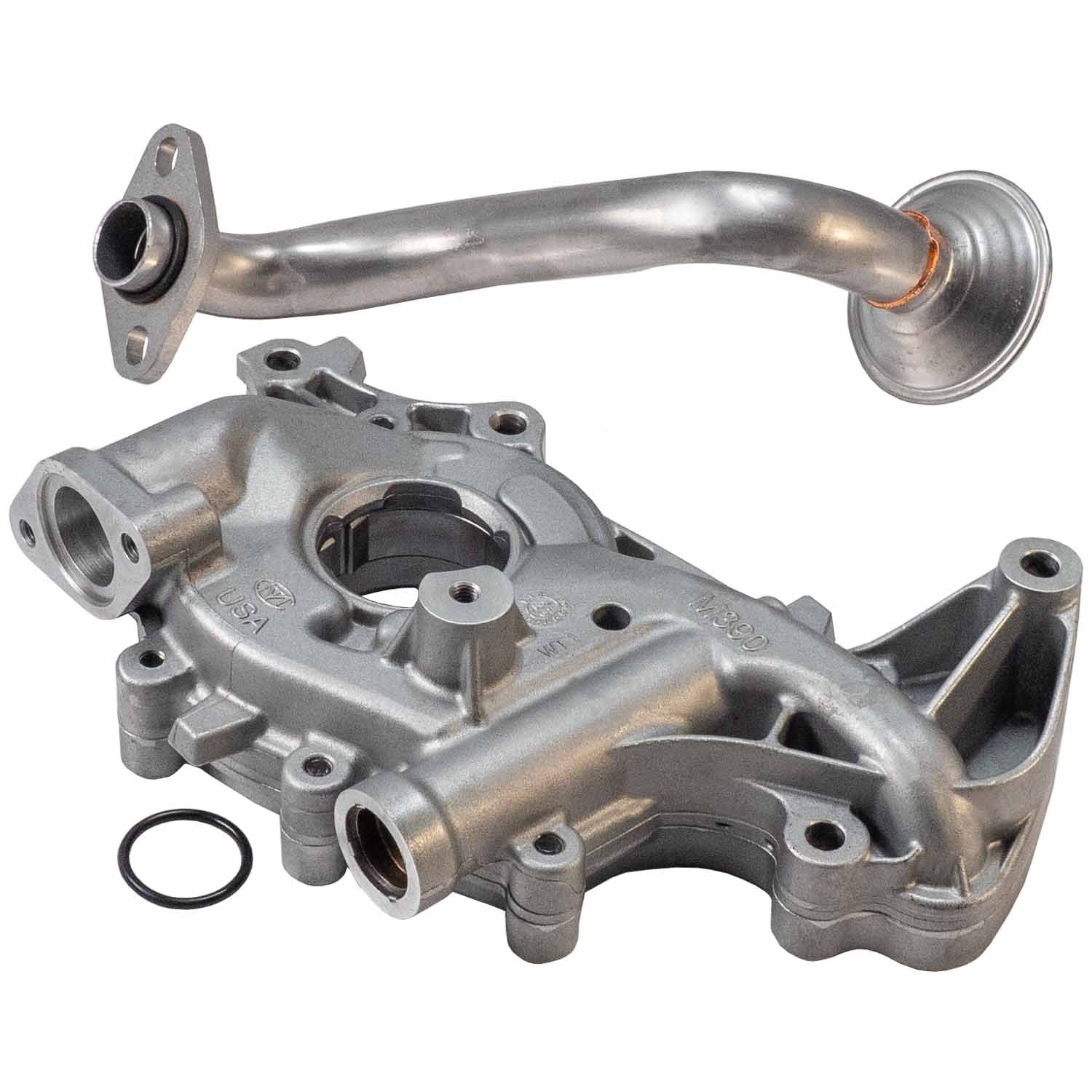

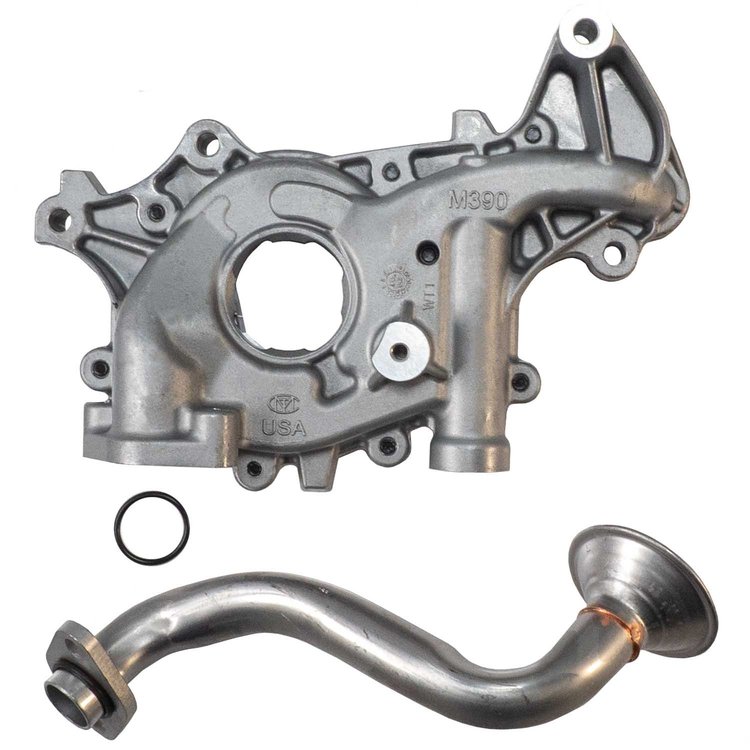

• M390 Oil Pump And 396S Oil Pump Pickup Tube
• Standard Volume And Pressure Oil Pump
• Grade Type: Regular
• Height: 6.75 in.
• Height: 171.0 mm
• Housing Material: Aluminum
• Mounting Hole Diameter: 0.315 in.
• Mounting Hole Diameter: 8.0 mm
• Mounting Hole Quantity: 4
• Oil Pump Pressure Type: Standard Pressure
• Oil Pump Type: Rotary
• Oil Pump Volume Type: Standard Volume
• Pickup Screen Diameter: 0.93 in.
• Pickup Screen Diameter: 24.0 mm
• Width: 9.0 in.
• Width: 229.0 mm
