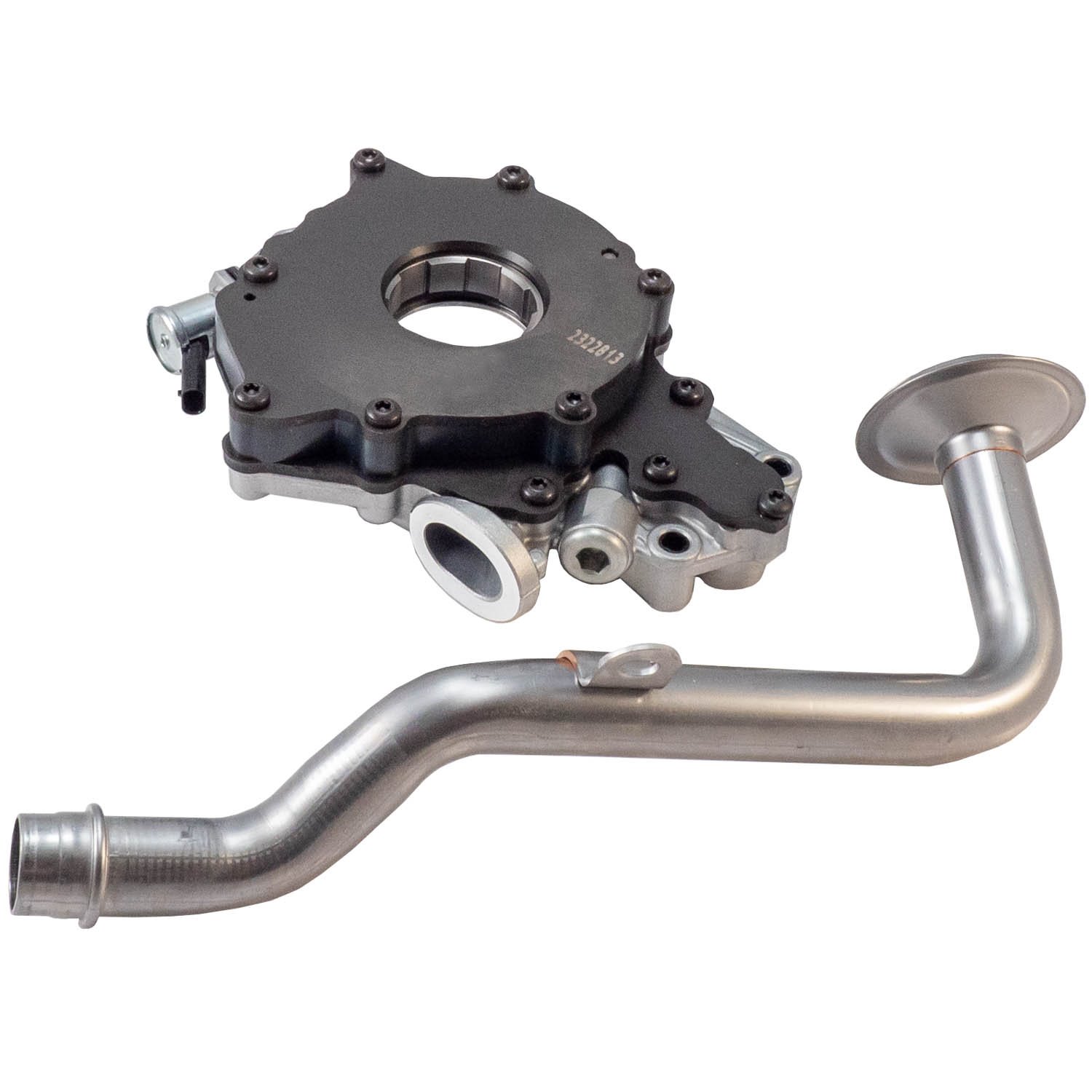

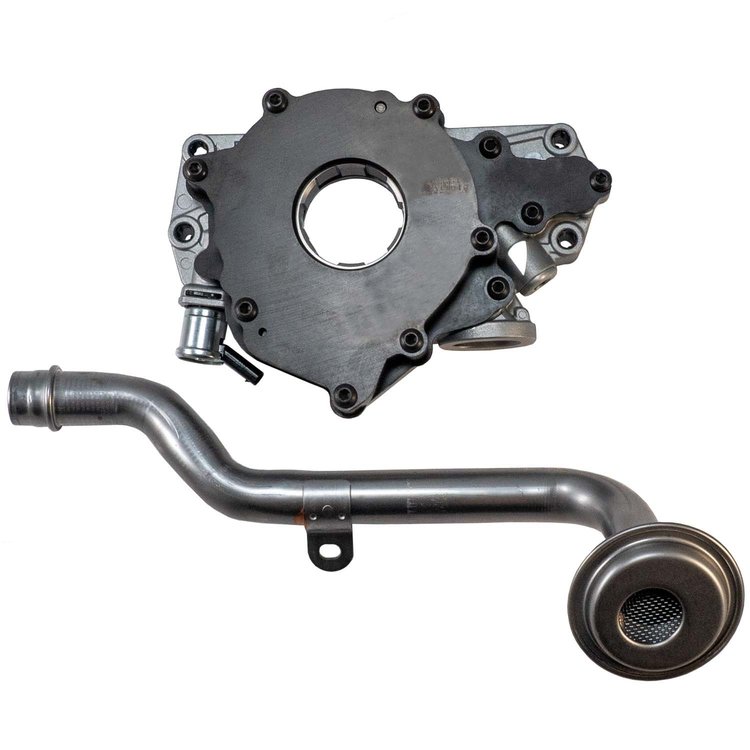

M555-419S Engine Oil Pump w/Pickup Tube for GM 4.3L LV1 Engines
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-M555-419S

M555-419S Engine Oil Pump w/Pickup Tube for GM 4.3L LV1 Engines

$37399
3 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

GM Truck
Engine Oil Pump w/Pickup Tube
  • 2014-2018 Chevy Silverado, GMC Sierra 1500
  • 2018-2020 Chevy Express, GMC Savana 2500/3500
  • GM 4.3L LV1 Engines

    Melling M555-419S Replacement Oil Pump Features:

    • High-quality materials
    • Manufactured using the latest in gear and gerotor technology
    • Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation
    • Precision-ground end plates for maximum wear resistance
    • Pressure and flow tested to duplicate actual engine operating conditions
    • Part TypeOil Pump
    BrandMELLING
    Package Height6.500 in.
    Package Width9.250 in.
    Package Length21.0
    Weight8.66 PG
    Housing MaterialAluminum
    Mounting Hole Quantity4
    Adjustable Bypass PressureNo
    Bolts IncludedNo
    Spacer IncludedNo
    Alternate Pressure Springs IncludedNo
    Anti-CavitationNo
    Inlet Size (In.)1.500
    O-Ring IncludedYes
    Washers IncludedNo
    Pickup Screen Diameter1.500 in.
    Mounting Hole Diameter0.375 in.
    Oil Pump Pressure TypeStandard Pressure
    Bushing IncludedNo
    Oil Pump TypeRotary
    Cover MaterialCast Iron
    Shaft MaterialNot Applicable
    Pickup Tube Diameter1.500 in.
    FinishRust Preventative
    Adjustable Pickup ScreenNo
    Gasket Or Seal IncludedNo
    Cotter Pin IncludedNo
    Drive TypeCrankshaft
    Solenoid IncludedYes
    Oil Pump Volume TypeStandard Volume
    Grade TypeStandard Replacement
    Timing Cover IncludedNo
    Rotor MaterialStainless Steel
    Vendor Part NumberM555-419S
    Package Qty1
    Package TypeEA
