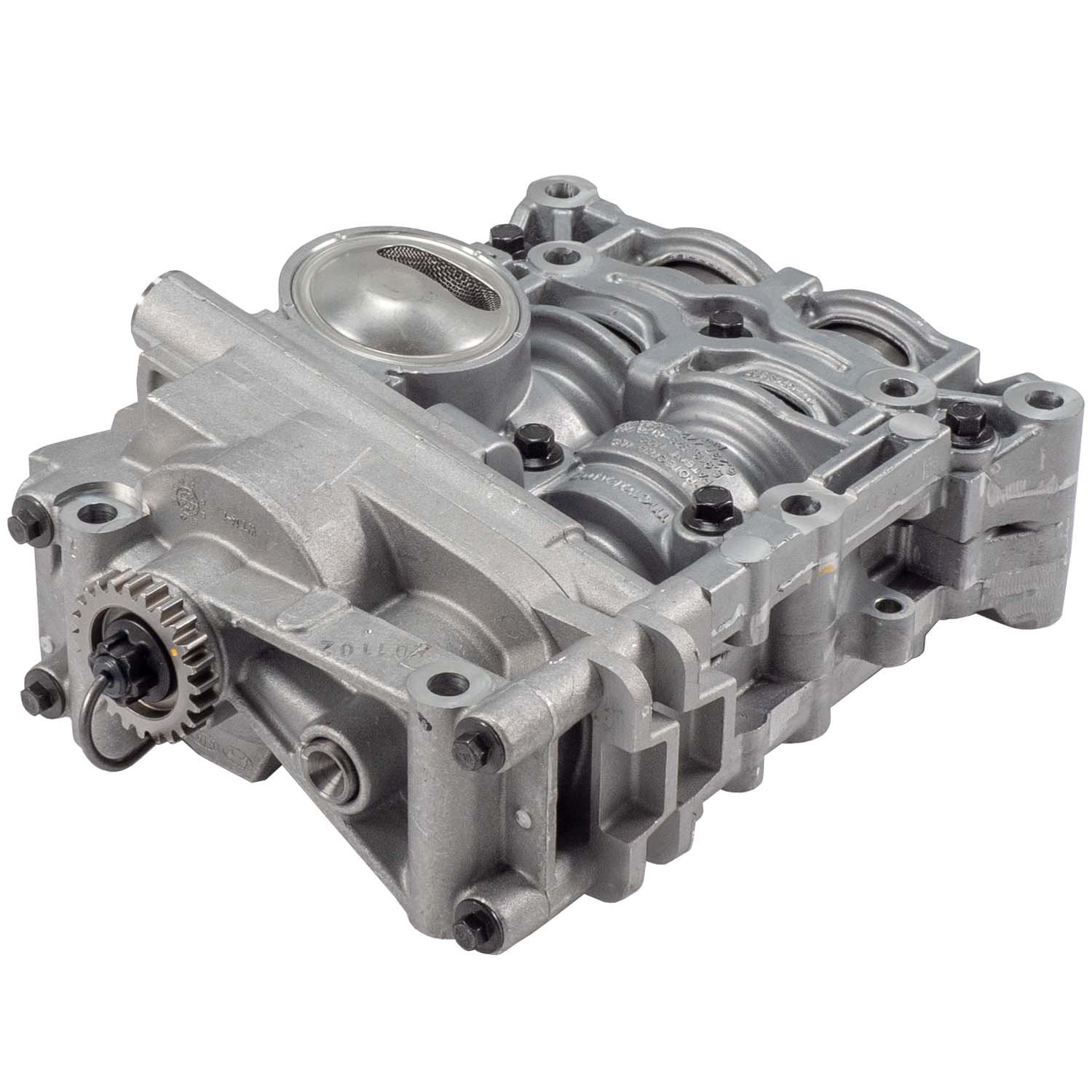

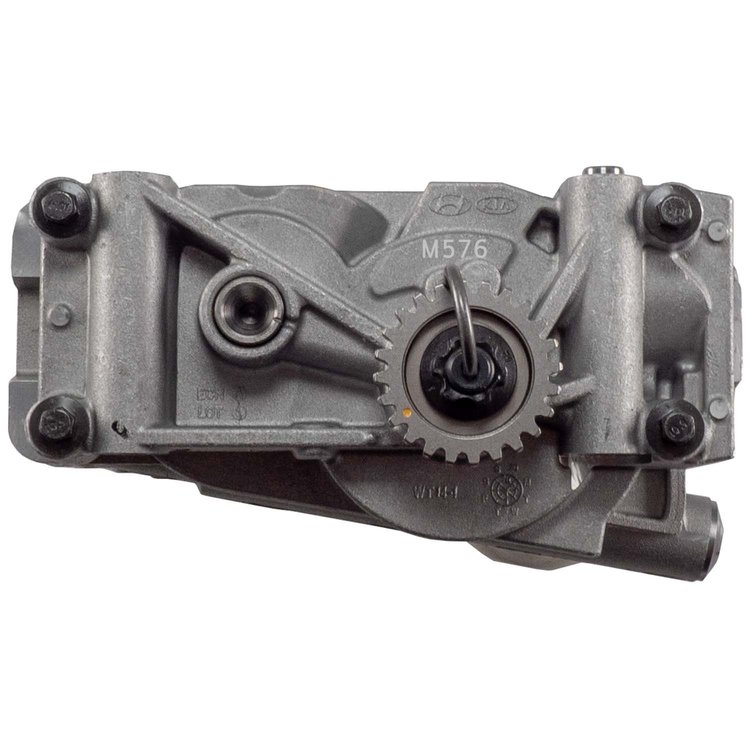

M576 Stock Replacement Oil Pump And Balance Shaft Assembly
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-M576

M576 Stock Replacement Oil Pump And Balance Shaft Assembly

$78799
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

    Stock Replacement Oil Pump And Balance Shaft Assembly
  • Adjustable Bypass Pressure: No
  • Adjustable Pickup Screen: No
  • Alternate Pressure Springs Included: No
  • Anti-Cavitation: No
  • Drive Sprocket Included: Yes

    Melling M576 Features:

    Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actual engine operating conditions.

  • Drive Type: Timing Chain
  • Gasket Or Seal Included: No
  • Gear Material: Steel
  • Grade Type: Regular
  • Height: 10.0 in.
  • Height: 254.0 mm
  • Housing Material: Aluminum
  • Mounting Hole Diameter: 0.413 in.
  • Mounting Hole Diameter: 11.0 mm
  • Mounting Hole Quantity: 7
  • Oil Pump Pressure Type: Standard Pressure
  • Oil Pump Type: Gear
  • Oil Pump Volume Type: Standard Volume
  • Pickup Screen Diameter: 2.13 in.
  • Pickup Screen Diameter: 54.0 mm
  • Width: 8.0 in.
  • Width: 203.0 mm
Part TypeOil Pump
BrandMELLING
Package Height10.0 in.
Package Width8.0 in.
Part CategoryReplacement Parts
Drive Shaft IncludedNo
Housing MaterialAluminum
Mounting Hole Quantity7
Adjustable Bypass PressureNo
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedNo
Anti-CavitationNo
Inlet Size (In.)Not Applicable
O-Ring IncludedNo
Washers IncludedNo
Pickup Screen Diameter2.50 in.
Mounting Hole Diameter0.413 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeGear
Cover MaterialAluminum
Shaft MaterialNot Applicable
Gear MaterialSteel
FinishRust Preventative
Adjustable Pickup ScreenNo
Gasket Or Seal IncludedNo
Cotter Pin IncludedNo
Drive TypeTiming Chain
Drive Sprocket IncludedYes
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypeStandard Replacement
Timing Cover IncludedNo
Vendor Part NumberM576
Package Qty1
Package TypeEA
