M583 Stock Replacement Oil Pump
InfoVehicle Info Needed
MELLINGPART NUMBER: 689-M583

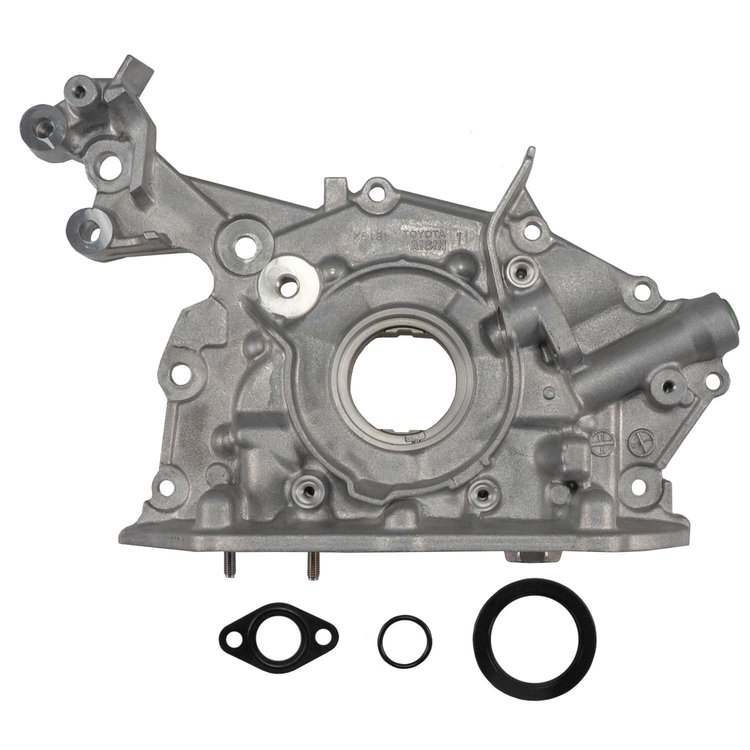

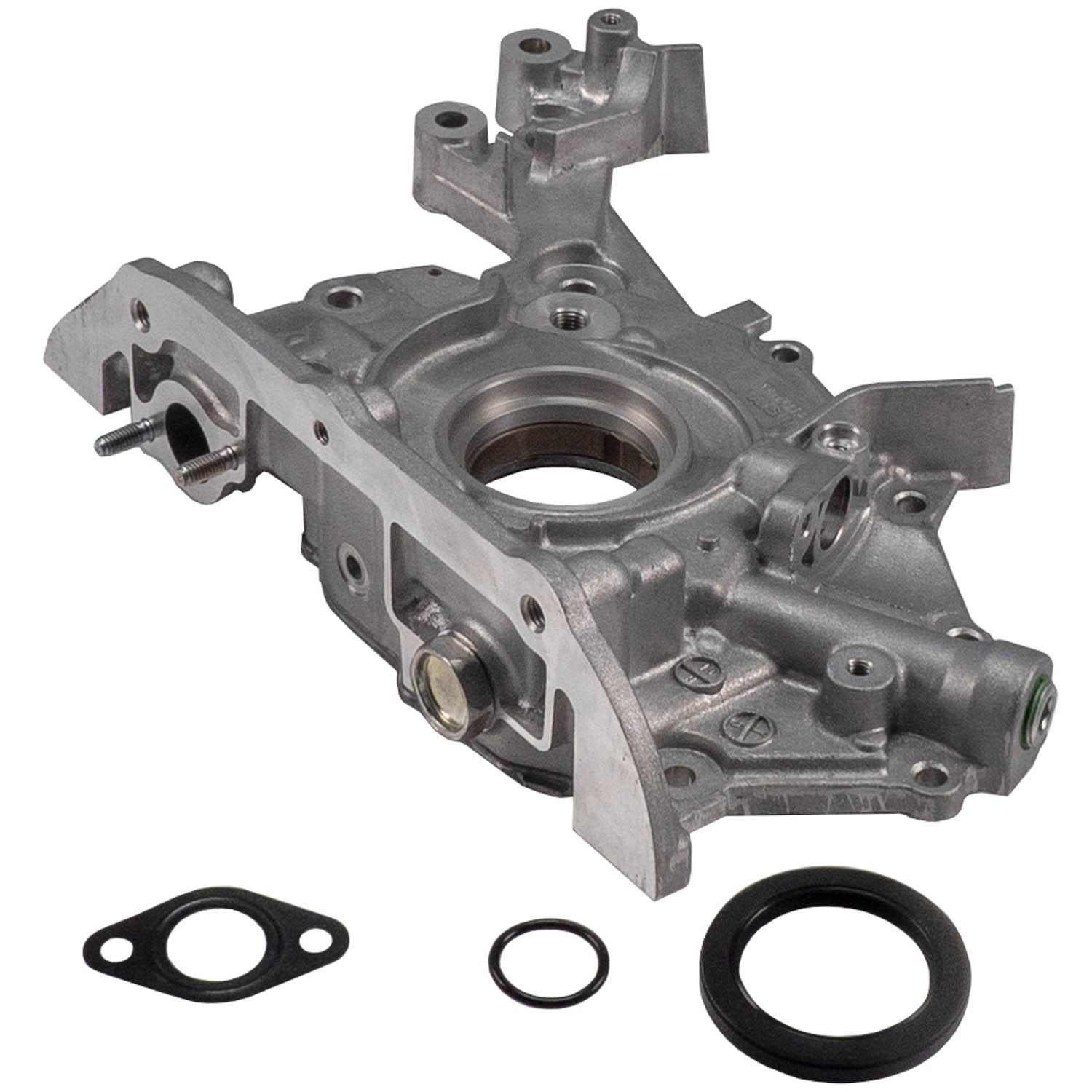

M583 Stock Replacement Oil Pump

$16999
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

    Stock Replacement Oil Pump
  • Adjustable Bypass Pressure: No
  • Adjustable Pickup Screen: No
  • Alternate Pressure Springs Included: No
  • Drive Type: Crankshaft
  • Gasket Or Seal Included: Yes

    Melling M583 Features:

    Melling oil pumps provide dependable performance every time in every application. Every Melling oil pump is engineered and assembled to the highest production standards from high quality materials. All Melling oil pumps use the latest in gear and gerotor technology to provide the highest level of quality and performance. Gears are machined to close tolerances to ensure proper engine pressure and correct, efficient pump operation. End plates are precision ground for maximum wear resistance. Every Melling oil pump is individually tested for pressure and flow under conditions designed to duplicate actua l engine operating conditions.

  • Grade Type: Regular
  • Height: 8.25 in.
  • Height: 210.0 mm
  • Housing Material: Aluminum
  • Mounting Hole Diameter: 0.28 in.
  • Mounting Hole Diameter: 0.35 in.
  • Mounting Hole Diameter: 0.432 in.
  • Mounting Hole Diameter: 7.0 mm
  • Mounting Hole Diameter: 11.0 mm
  • Mounting Hole Diameter: 9.0 mm
  • Mounting Hole Quantity: 13
  • Oil Pump Pressure Type: Standard Pressure
  • Oil Pump Type: Rotary
  • Oil Pump Volume Type: Standard Volume
  • Pickup Tube Diameter: 0.8 in.
  • Pickup Tube Diameter: 20.0 mm
  • Rotor Material: Steel
  • Width: 12.25 in.
  • Width: 311.0 mm
Part TypeOil Pump
BrandMELLING
Package Height8.25 in.
Package Width12.25 in.
Part CategoryReplacement Parts
Housing MaterialAluminum
Mounting Hole Quantity13
Adjustable Bypass PressureNo
Bolts IncludedNo
Spacer IncludedNo
Alternate Pressure Springs IncludedNo
Inlet Size (In.)0.787
O-Ring IncludedYes
Washers IncludedNo
Mounting Hole Diameter0.432 in.
Oil Pump Pressure TypeStandard Pressure
Bushing IncludedNo
Oil Pump TypeRotary
Cover MaterialCast Iron
Shaft MaterialNot Applicable
Pickup Tube Diameter0.8 in.
FinishRust Preventative
Adjustable Pickup ScreenNo
Gasket Or Seal IncludedYes
Cotter Pin IncludedNo
Drive TypeCrankshaft
Oil Pump Volume TypeStandard Volume
Part FitmentDirect Fit
Grade TypeStandard Replacement
Timing Cover IncludedNo
Rotor MaterialSteel
Vendor Part NumberM583
Package Qty1
Package TypeEA
