Vehicle Info NeededMELLINGPART NUMBER: 689-MTC-1

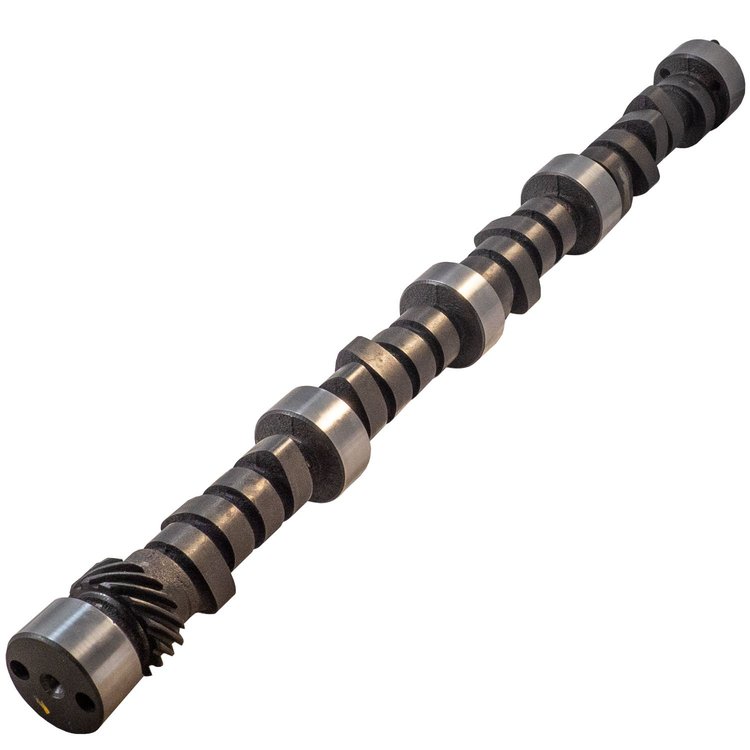

MTC-1 Class 1 Camshaft for 1955-1988 Chevy Small Block Engines
$13999
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
Class 1 Camshaft1955-1988 Chevy Small Block Engines Hydraulic Flat Tappet 278 intake duration 288 exhaust duration .420 in. - .433 in Lift Sold Individually
Melling MTC-1 Features:
- Cam Type: Hydraulic
- Lobe Separation: 112
- High-Performance Camshaft
Emissions Note:
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) # D-295-1
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft
BrandMELLING
Package Height2.7
Package Width2.8
Package Length24.1
Weight8.76 PG
Part CategoryPerformance Parts
Rocker Arm Ratio1.5
Intake Duration At .050 Inch Lift204 DD
Lobe Separation112 DD
Exhaust Valve Lift0.444 in.
Advertised Intake Duration278 DD
Intake Valve Lift0.421 in.
Exhaust Duration At .050 Inch Lift214 DD
Advertised Exhaust Duration288 DD
Lifter TypeHydraulic Flat Tappet
Part FitmentDirect Fit
Computer Controlled CompatibleNo
Cam TypeHydraulic
Grade TypePerformance
Vendor Part NumberMTC-1
Package Qty1
Package TypeEA
