Vehicle Info NeededMELLINGPART NUMBER: 689-VS-1479

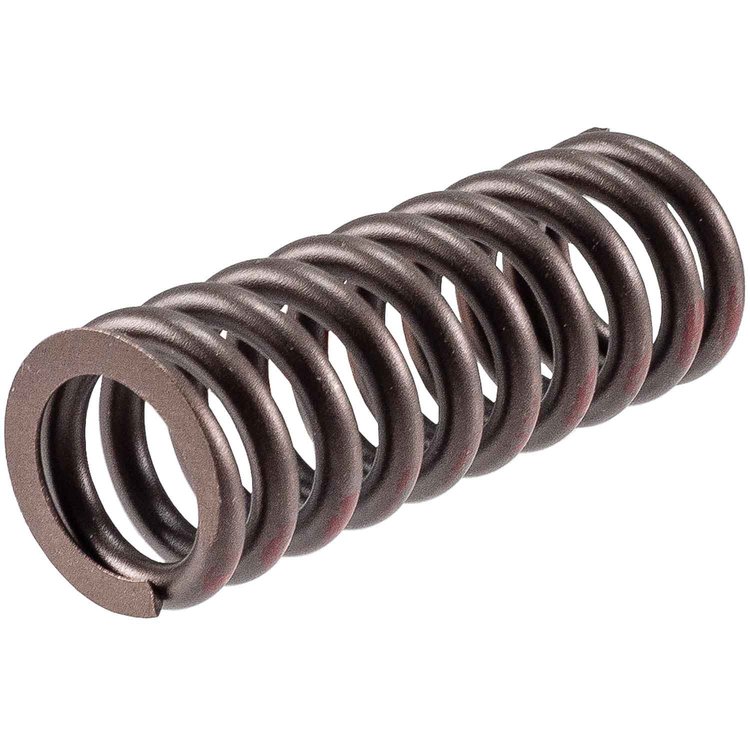

VS-1479 Valve Spring for Cummins Diesel 24V Engines
$799
Ships on 11/03/2026
Lowest Price GuaranteeCummins
Valve SpringClosed Pressure: 94 PSI Coil Bind Height: 2.275 in. (57.79 mm) I.D.: 0.957 in. (24.31 mm) O.D.: 1.393 in. (35.38 mm) Open Height: 2.535 in. (64.39 mm) Open Pressure: 324 PSI Type: Single Spring Sold Individually
VS-1479 Features:
- Material: CrSi (Chrome Silicon)
- Installed Height: 3.844 in. (97.630 mm)
Fitment:
- For Cummins Diesel 24V 11.9L (ISX11) - SOHC (Single Overhead Cam) L6 Block
- For Cummins Diesel 24V 12.97L (ISZ13, QSZ13) - DOHC (Dual Overhead Cam) L6 Block
- For Cummins Diesel 24V 14.9L (ISX15, QSX16, X15) - SOHC L6 Block
- For Cummins Diesel 24V 15.0L (ISX, QSX) - DOHC L6 Block
Renew Your Engine with New Valve Springs
Melling Valve Springs with a new camshaft will help your engine reach its full potential. Melling products will meet your vehicle's valvetrain needs.
Part TypeValve Spring
Product LineMelling OEM Replacement Valve Springs
BrandMELLING
Part CategoryReplacement Parts
Coil Bind Height2.275 in.
Inside Diameter0.957 in.
Installed Pressure94.0 psi
Spring TypeSingle Spring
MaterialChromium-Silicon Alloy Steel Wire
Outside Diameter1.393 in.
Installed Height3.464 in.
Open Pressure324.0 psi
Spring Open Height2.535 in.
Grade TypeStandard Replacement
Vendor Part NumberVS-1479
Package Qty1
Package TypeEA
