Product Discontinued
METCO MOTORSPORTSPART NUMBER: 681-ICPLSA-12

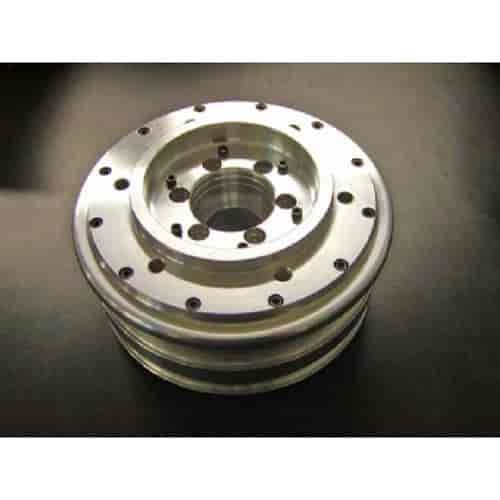

Interchangeable Crank Pulley Kit Includes Innovators West Balancer
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Cadillac CTS-V/ Camaro ZL1
- Interchangeable Crank Pulley Kit
- Includes Innovators West Balancer
- Metco 10.5in Crankshaft Ring
- Cadillac CTS-V/ Camaro ZL1
- 2009-Newer
- Metco 10.5in Crankshaft Ring Kit Requires MIPDBR50 to Provide Necessary Clearance
This crank pulley kit is based on the Innovator's West replacement balancer assembly for the GM LSA engine. This kit represents a clean and simple way to add boost and horsepower to your supercharged Cadillac or Camaro without making any permanent modifications. The Innovator's West balancer is precision-machined in the USA and installs directly in place of the factory unit. The IW balancer and crank ring assembly weighs only 12.6 lbs, compared to 16.2 lbs for the factory steel unit. Installation of this kit removes significant rotating mass from the front of the engine. Our CNC-machined crank pulley rings bolt directly to the new balancer using the provided fasteners. Once the balancer assembly is installed, changing the outer ring to adjust the boost level is simply a matter of six the allen-head fasteners. Crank pulley rings are also available separately and are listed elsewhere in this section.We installed the IW balancer, 9.55" crank pulley ring, and 50mm idler pulley on our own CTS-V. On ProDyno's chassis dyno, the car made 547 HP at the tires, right off the street, with a very safe tune. The car showed a max boost level of 13.5 lbs (13.9 indicated on the dash gauge). - Supercharger Belt Lengths:
- +2 lbs 8.60" Crank pulley ring and stock idler pulley: 67.5" belt
- +3 lbs 9.10: Crank pulley ring and 50mm idler pulley: 68.0" belt
- +4.5 lbs 9.55" Crank pulley ring and 50mm idler pulley: 69.0" belt
- +5.5 lbs 10.00" Crank pulley ring with 50mm idler pulley and idler relocation bracket:71.5" belt
- +6.5 lbs 10.50" Crank pulley ring with 50mm idler pulley and idler relocation bracket: 72.5" belt (estimated)
- Note 1: The original belt in most applications is 66.0" in length.
Part TypeCrankshaft Pulley
BrandMETCO MOTORSPORTS
Package Height13.0
Package Width13.5
Package Length13.5
Weight16.8 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
