Vehicle Info NeededMEZIEREPART NUMBER: 680-WP105UHD

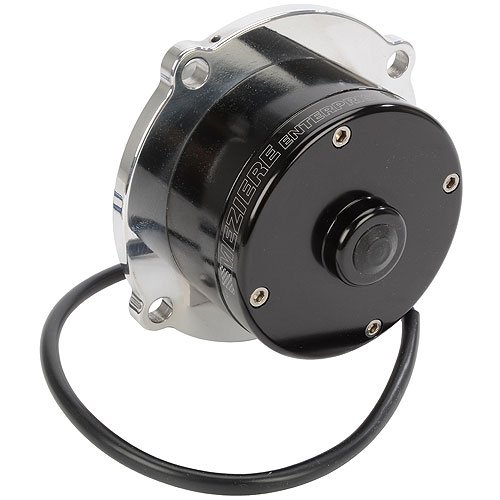

100 Series Electric Water Pump Big Block Chrysler Use with Stock Pump Housing
$35721
1 left in stock
Ships Tomorrow
Lowest Price Guarantee- 100 Series Electric Water Pump
- Big Block Chrysler Use with Stock Pump Housing
- 42 GPM
- Heavy Duty Motor
- Polished Finish
Built as a low cost alternative electric pump. This unit uses the stock Chrysler water pump housing. This pump looks good and flows over 35 to 42 GPM. Relocation of factory brackets may be required. Street engines over 450hp should use the HD pumps.
Features: - Fits Factory Water Pump Housing
- Installs in Minutes
- Uses Factory Gaskets
- Street or Strip Duty
- Fits big block Mopar as an insert into the factory pump housing
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Heavy duty motor provides 42 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete unit weighs only 3.7 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
Technical Specifications: - Finishing The System: This pump is supplied complete with gaskets and hardware. There are no other necessary items.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 4.00' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 3.7 lbs.
Additional Notes: The 42GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.
Part TypeWater Pump
BrandMEZIERE
Package Height6.3
Package Width6.4
Package Length6.7
Weight5.7 PG
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredNo
Hose Adapter IncludedNo
Overall Depth4 in (101.6 mm)
QuantitySold individually
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)42 GPM
Pump FinishPolished
Vendor Part NumberWP105UHD
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
