Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

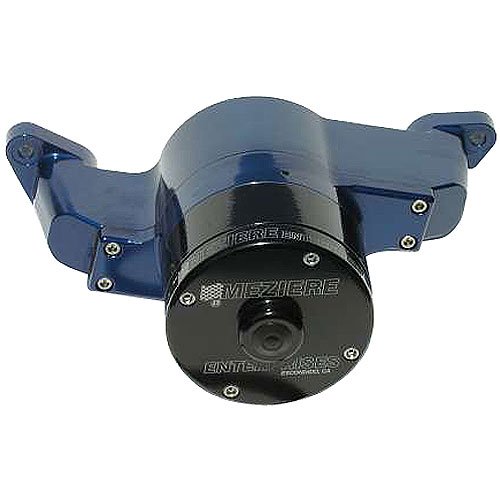

- 100 Series Electric Water Pump
- Small Block Ford / AMC
- 35 GPM
- 16-Volt Motor
- Blue Anodized Finish
This is the most common pump body for small block Ford engines. It will bolt up to front covers from the early 1964 style through 1993 and slightly beyond. It has been used as the heart of many cooling systems and can be coupled with one of several different back plates to complete your system right. 1' NPT inlet required.
Ford Engine Back Plate Requirements: - WP112 - Early 221-289ci
- WP113 - Traditional 289ci/5.0L
- WP123 - Cleveland
AMC Engine Back Plate Requirements: - WP127 - 360-401ci
Features: - Fits small block Ford Windsor, Cleveland and 5.0 models before 1994
- Upgraded motor for 16-volt electrical systems
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Standard motor provides 35 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete standard small block Ford unit weighs only 5.7 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- Pump will clear cam belt drives and most blower drives
- 1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
Technical Specifications: - Belt Drives: Standard SBF design will clear Jessel belt drives and comparable belt drive systems.
- NOTE: If you are running a cam belt drive on your small block Ford, you will most likely need the WP173 pump. This pump will not fit Yates, Danny B, Jessel, or Race Master belt drives.
- Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
- Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting and optional back plate. The fitting needs to be ordered according to the size of the lower radiator hose. A back plate will be required in all applications using a stock style timing cover.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 6.60' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.7 lbs.
- 16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt optional motor on our pump. The 12-volt pump will work for limited use applications.
Additional Notes:The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
BrandMEZIERE
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
