Vehicle Info NeededMEZIEREPART NUMBER: 680-WP116CHD

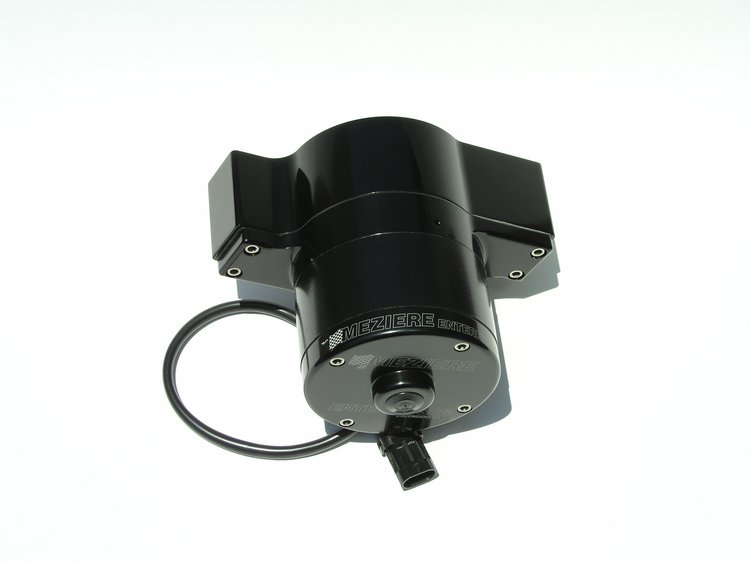

100 Series Remote Mount Bulkhead Electric Water Pump 42 gpm
$65817
Ships on 09/17/2026
Lowest Price Guarantee100 Series42 GPM Free-Flow Rating
- 100 Series Remote Mount Bulkhead Electric Water Pump
- 42 gpm
- Heavy-Duty Motor
- Chrome
Features: - Remote mount bulkhead design for universal fit
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Heavy Duty motor provides 42 gallons per minute free flow rating
- Stainless steel hardware and 4130 mounting bracket included
- Single inlet port threaded 1' NPT to accept our standard inlet fittings
- Dual outlet ports threaded #12AN for a wide variety of line connection options
- Dual outlet ports provide tandem outlet lines perfect for V6, V8 or V10 applications
- Light weight. Complete standard unit weighs only 5.5 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- 1' NPT inlet adapters available for -12AN, -16AN, -20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
- -12AN o-ring style outlet fittings available for -10AN, -12AN, -16AN, 5/8', 3/4', 1', or 1-1/4' slip hose.
Technical Specifications: - Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 5.00' long from the mounting surface to the tip of the pump. The heavy duty pump is 5.50' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.5 lbs.
- Care should be taken that the pump not be run while charging.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberWP116CHD
Package Qty1
Package TypeEA
