Vehicle Info NeededMEZIEREPART NUMBER: 680-WP116R

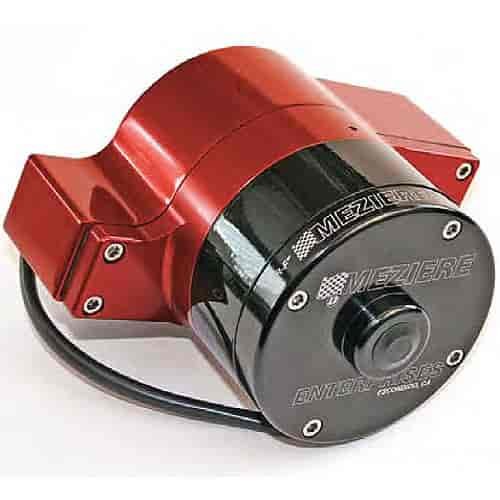

100 Series Remote Mount Bulkhead Electric Water Pump 35 gpm
$40846
Ships on 09/17/2026
Lowest Price Guarantee100 Series35 GPM Free-Flow Rating
- 100 Series Remote Mount Bulkhead Electric Water Pump
- 35 gpm
- Standard Motor
- Anodized Red
Features: - Remote mount bulkhead design for universal fit
- Suitable for street or drag strip use - 2500+ hour life expectancy
- Show quality finish
- Standard motor provides 35 gallons per minute free flow rating
- Stainless steel hardware and 4130 mounting bracket included
- Single inlet port threaded 1' NPT to accept our standard inlet fittings
- Dual outlet ports threaded #12AN for a wide variety of line connection options
- Dual outlet ports provide tandem outlet lines perfect for V6, V8 or V10 applications
- Light weight. Complete standard unit weighs only 5.4 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- 1' NPT inlet adapters available for -12AN, -16AN, -20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
- -12AN o-ring style outlet fittings available for -10AN, -12AN, -16AN, 5/8', 3/4', 1', or 1-1/4' slip hose.
Technical Specifications: - Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 5.00' long from the mounting surface to the tip of the pump. The heavy duty pump is 5.50' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.4 lbs.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Built to Flow 35, 42, or 55 GPM!
Perfect for 12- and 16-Volt Electrical Systems
Remote pumps are the solution when an engine-mounted pump is not available or space limits the ability to use one. These bulkhead-style pumps mount to the frame, firewall, or back of a motor plate. All plumbing inlets/outlets are on one side to install easily and to eliminate any need for a water manifold or distribution block. Standard 100 Series Pumps flow 35 gpm while heavy-duty 100 Series Pumps flow 42 gpm. The 300 Series offers a high-flow water pump at 55 gpm. The pump housing, motor cap, and impeller are CNC-machined from 6061-T6 billet aluminum, and a stainless steel impeller shaft runs through a carbon-ceramic seal to isolate the epoxy-coated motor from coolant. The motor also has a radio frequency suppression circuit to reduce ignition (RF) interference.
Show More
Features:
- Remote Mount Bulkhead Design for Universal Fit
- Suitable for 12-Volt and 16-Volt Electrical Systems
- All Stainless Steel Hardware and 4130 Mounting Bracket Included
- Billet Aluminum Impeller, Pump Housing, and Motor Cap
- Stainless Steel Impeller Shaft
- 1-Piece Carbon-Ceramic Seal
- 100 Series Free-Flow Rating: Standard Motor 35 or Heavy Duty Motor 42 gallons per minute
- 100 Series Pumps: 1'' NPT Single Inlet Port and Dual -12AN O-Ring Outlet Ports
- The standard 35 gpm pump is suitable for normally aspirated engines up to 650 HP
- 300 Series Free-Flow Rating: 55 gallons per minute
- 300 Series Pumps: Single Inlet Port Accepts Meziere ''WN'' Fittings and Dual -12AN O-Ring Outlet Ports
- Supercharged, turbocharged, and high-compression high-horsepower applications should use the 55 gpm pump
- 2-Year Unlimited Mileage Guarantee
- Available Polished, Chrome, Black, Blue, or Red
-
Part TypeWater Pump
Product LineMeziere Remote Mount Bulkhead Electric Water Pumps
BrandMEZIERE
Package Height4.9
Package Width8.3
Package Length13.8
Weight6.7 PG
Weight5.4 lb (2.449 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw8.00 amps
Hose Adapter IncludedNo
Overall Depth5 in (127 mm)
QuantitySold individually
Hose Adapter Thread Size (In.)1 NPT
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)35 GPM
Pump FinishRed anodized
Vendor Part NumberWP116R
Package Qty1
Package TypeEA
