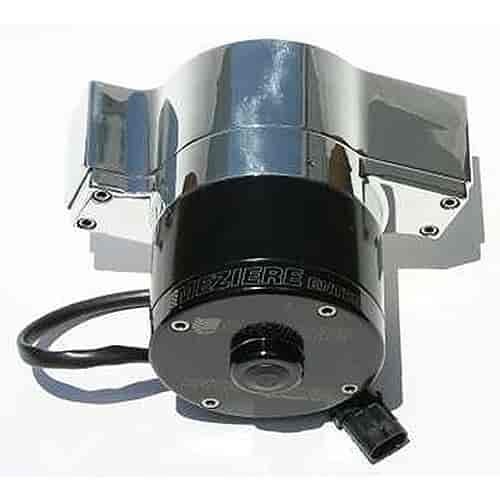

100 Series Remote Mount Bulkhead Electric Water Pump 35 gpm

Name: 100 Series Remote Mount Bulkhead Electric Water Pump 35 gpm
Brand: MEZIERE
SKU: 680-WP116U16
Price: 391.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

100 Series

Free-Flow Rating: 35 or 42 gpm

35 gpm
16V Motor
Polished

Features:
Remote mount bulkhead design for universal fit
Upgraded motor for 16-volt electrical systems
Suitable for street or drag strip use - 3000+ hour life expectancy
Show quality finish
Standard motor provides 35 gallons per minute free flow rating
Stainless steel hardware and 4130 mounting bracket included
Single inlet port threaded 1' NPT to accept our standard inlet fittings
Dual outlet ports threaded #12AN for a wide variety of line connection options
Dual outlet ports provide tandem outlet lines perfect for V6, V8 or V10 applications
Light weight. Complete standard unit weighs only 5.5 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
1' NPT inlet adapters available for -12AN, -16AN, -20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
-12AN o-ring style outlet fittings available for -10AN, -12AN, -16AN, 5/8', 3/4', 1', or 1-1/4' slip hose.

Technical Specifications:
Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
Amperage draw: Under normal use the pump will draw 6-7 amps.
Overall Height Dimension: The standard pump is 5.00' long from the mounting surface to the tip of the pump. The heavy duty and 16-volt pump is 5.50' long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 5.5 lbs.
16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt motor on your pump. The 12-volt pump will work for limited use applications (Care should be taken that the pump not be run while charging).

Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.

Built to Flow 35, 42, or 55 GPM!
Perfect for 12- and 16-Volt Electrical Systems

Remote pumps are the solution when an engine-mounted pump is not available or space limits the ability to use one. These bulkhead-style pumps mount to the frame, firewall, or back of a motor plate. All plumbing inlets/outlets are on one side to install easily and to eliminate any need for a water manifold or distribution block. Standard 100 Series Pumps flow 35 gpm while heavy-duty 100 Series Pumps flow 42 gpm. The 300 Series offers a high-flow water pump at 55 gpm. The pump housing, motor cap, and impeller are CNC-machined from 6061-T6 billet aluminum, and a stainless steel impeller shaft runs through a carbon-ceramic seal to isolate the epoxy-coated motor from coolant. The motor also has a radio frequency suppression circuit to reduce ignition (RF) interference.

Features:

Remote Mount Bulkhead Design for Universal Fit
Suitable for 12-Volt and 16-Volt Electrical Systems
All Stainless Steel Hardware and 4130 Mounting Bracket Included
Billet Aluminum Impeller, Pump Housing, and Motor Cap
Stainless Steel Impeller Shaft
1-Piece Carbon-Ceramic Seal
100 Series Free-Flow Rating: Standard Motor 35 or Heavy Duty Motor 42 gallons per minute
100 Series Pumps: 1'' NPT Single Inlet Port and Dual -12AN O-Ring Outlet Ports
The standard 35 gpm pump is suitable for normally aspirated engines up to 650 HP
300 Series Free-Flow Rating: 55 gallons per minute
300 Series Pumps: Single Inlet Port Accepts Meziere ''WN'' Fittings and Dual -12AN O-Ring Outlet Ports
Supercharged, turbocharged, and high-compression high-horsepower applications should use the 55 gpm pump
2-Year Unlimited Mileage Guarantee
Available Polished, Chrome, Black, Blue, or Red
