Vehicle Info NeededMEZIEREPART NUMBER: 680-WP116UHD

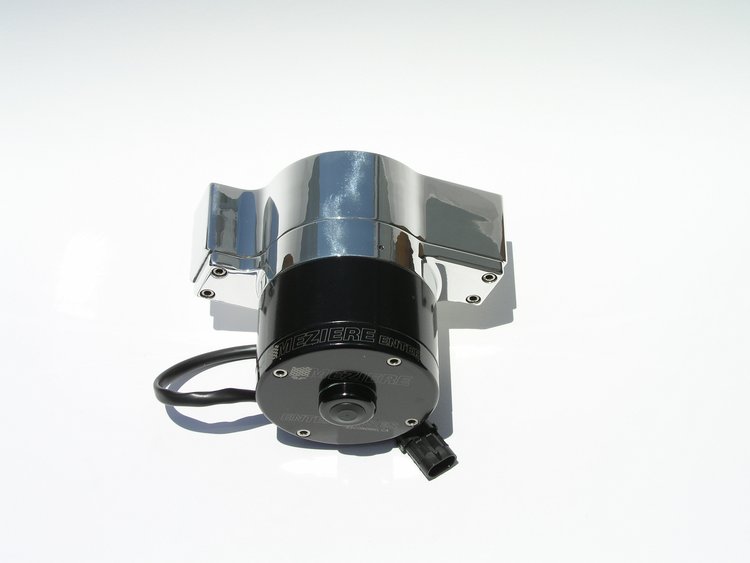

100 Series Remote Mount Bulkhead Electric Water Pump 42 gpm
$43347
Ships on 09/17/2026
Lowest Price Guarantee100 Series42 GPM Free-Flow Rating
- 100 Series Remote Mount Bulkhead Electric Water Pump
- 42 gpm
- Heavy-Duty Motor
- Polished
Features: - Remote mount bulkhead design for universal fit
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Heavy Duty motor provides 42 gallons per minute free flow rating
- Stainless steel hardware and 4130 mounting bracket included
- Single inlet port threaded 1' NPT to accept our standard inlet fittings
- Dual outlet ports threaded #12AN for a wide variety of line connection options
- Dual outlet ports provide tandem outlet lines perfect for V6, V8 or V10 applications
- Light weight. Complete standard unit weighs only 5.5 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- 1' NPT inlet adapters available for -12AN, -16AN, -20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
- -12AN o-ring style outlet fittings available for -10AN, -12AN, -16AN, 5/8', 3/4', 1', or 1-1/4' slip hose.
Technical Specifications: - Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 5.00' long from the mounting surface to the tip of the pump. The heavy duty pump is 5.50' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.5 lbs.
- Care should be taken that the pump not be run while charging.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Package Height6.3
Package Width6.3
Package Length6.6
Weight6.09 PG
Weight6.4 lb (2.902 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw8.00 amps
Hose Adapter IncludedNo
Overall Depth5.5 in (139.7 mm)
QuantitySold individually
Hose Adapter Thread Size (In.)1 NPT
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)42 GPM
Pump FinishPolished
Vendor Part NumberWP116UHD
Package Qty1
Package TypeEA
