Vehicle Info NeededMEZIEREPART NUMBER: 680-WP119S

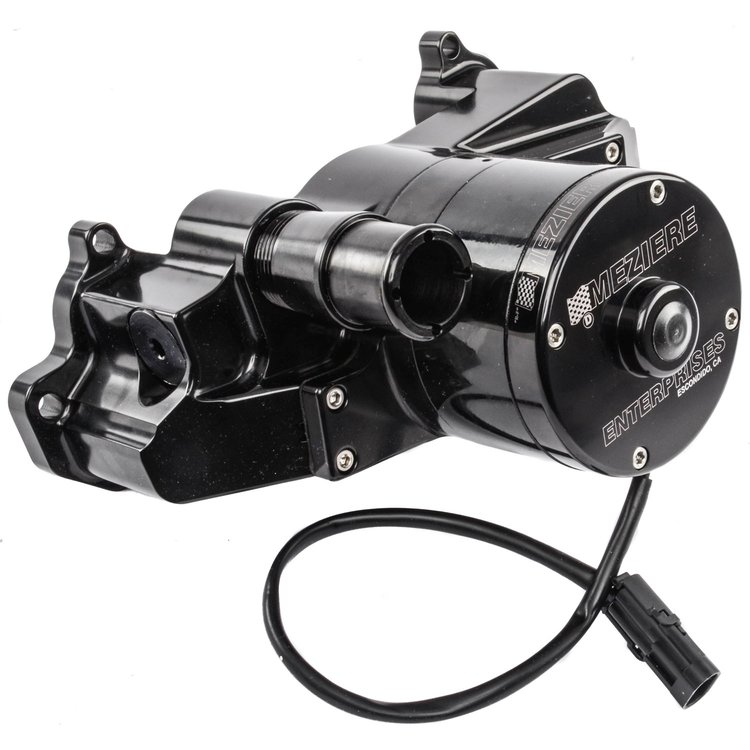

100 Series Electric Water Pump Chevy LS Engines
$69755
2 left in stock
Ships Tomorrow
Lowest Price Guarantee- 100 Series Electric Water Pump
- Chevy LS Engines
- 35 GPM
- Standard Motor
- Black Anodized Finish
Originally designed for Stock and Super Stock drag racers, this pump can also be found on street rods, dune buggies and modified street cars. This pump is not designed to accommodate factory accessories like power steering, alternator, air conditioning.
Features: - Fits GM LS-1 through LS-8 engines
- Suitable for street or drag strip use - 2500+ hour life expectancy
- Show quality finish
- Standard motor provides 35 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete standard GM LS-X unit weighs only 7.0 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- Pump will clear cam belt drives and most blower drives
- 1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
- 1' NPT to 1-1/4' hose outlet adapter included
Technical Specifications: - Belt Drives: Standard LS-X design will clear Jessel belt drives and comparable belt drive systems.
- Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
- Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 6.80' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 7.0 lbs.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Package Height5.1
Package Width8.2
Package Length13.9
Weight8.51 PG
Weight7 lb (3.175 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw8.00 amps
Hose Adapter IncludedNo
Overall Depth6.7 in (170.2 mm)
QuantitySold individually
Hose Adapter Thread Size (In.)1 NPT
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)35 GPM
Pump FinishBlack anodized
Vendor Part NumberWP119S
Package Qty1
Package TypeEA
