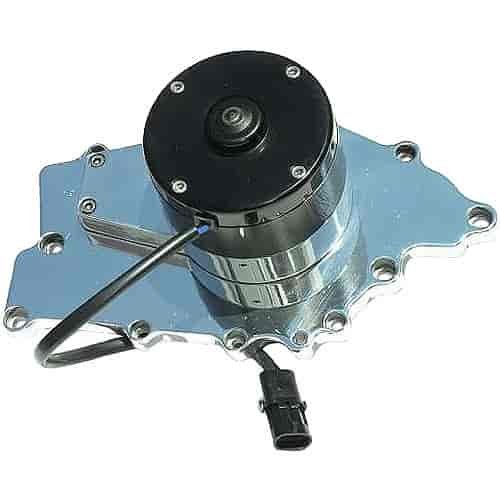

100 Series Electric Water Pump Big Block Buick

Name: 100 Series Electric Water Pump Big Block Buick
Brand: MEZIERE
SKU: 680-WP126CHD
Price: 820.12 USD
Availability: InStock

^$820¹²

Ships on 09/17/2026

Lowest Price Guarantee

Buick - Big Block

100 Series Electric Water Pump

The big block Buick's factory timing cover forced Meziere to do things a little different in the design of this pump. The end result gives you all the features of the 100 series pump and clearance for non-A/C V-belt routing. No inlet required.

Features:

Fits big block Buick 400, 430, 455

Suitable for street or drag strip use - 3000+ hour life expectancy

Show quality finish

Heavy Duty motor provides 42 gallons per minute free flow rating

All stainless steel hardware included

Light weight. Complete heavy duty big block Buick unit weighs only 5.8 pounds!

Stainless steel large diameter main shaft with high performance ceramic seal

1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose

Technical Specifications:

Finishing The System: This pump is supplied complete with gaskets and hardware. No additional items should be necessary.

Amperage draw: Under normal use the pump will draw 6-7 amps.

Overall Height Dimension: The heavy duty pump is 4.50' long from the mounting surface to the tip of the pump.

Pump Weight: This application weighs 5.8 lbs.

Additional Notes:The standard 42GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses.

Keep Your Car Cool... Perfect for 12V or 16V Electrical System

Meziere's 100 Series Electric Water Pump is lightweight and flows 35+ gallons per minute. They are ideal for mild street and Sportsman drag cars. The pump housing, motor cap, and impeller are CNC-machined from 6061-T6 billet aluminum for superior corrosion resistance. The stainless steel impeller shaft runs through a 1-piece carbon-ceramic seal that isolates the epoxy-coated motor from coolant for years of reliable service. The motor has a radio frequency suppression circuit in the motor brush card to reduce ignition "RF" interference. These 100 Series pumps are available with two motor option, standard duty and heavy duty.

The HD (heavy duty) motors provide more power and RPM, increasing flow and pressure over the standard duty motors. HD motors are recommended for street cars and other continuous duty applications (where high flow model pumps are not available). Most pumps are machined with a 1" NPT port(s) to direct water into the pump using one of the inlet adapters that you choose to best suit your needs. Inlet adapters are available in slip-on rubber hose style to AN sizes, inlet fittings are sold separately and not included with pump. Most pumps and fittings are chrome, polished, or anodized. Longer inlets, extensions, and angle adapters also available.

Meziere pumps are American made with pride and quality far superior to any other performance aftermarket company. Don't be misled by the inflated flow numbers and outlandish claims of others. Meziere says what they mean and means what they say. The 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value!
