Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

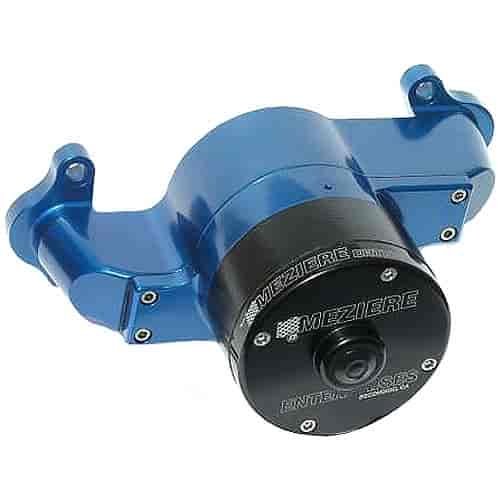

- 100 Series Electric Water Pump
- Oldsmobile V8
- 35 GPM
- 16-Volt Motor
- Blue Anodized Finish
Coverage for Oldsmobile V8's is easy. All big-block, small-block, corporate, and diesel engines after 1965 share the same water pump. The pump bolts to the factory timing plate with hardware and gasket provided. Passenger side inlet. Not compatible with 1964 330ci, driver side inlet radiator.
Features: - Fits the traditional Oldsmobile engine
- Upgraded motor for 16-volt electrical systems
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Standard motor provides 35 gallons per minute free flow rating
- All stainless steel hardware included
- Light weight. Complete standard Olds unit weighs only 5.9 pounds!
- Stainless steel large diameter main shaft with high performance ceramic seal
- Pump will clear cam belt drives and most blower drives
- 1' NPT inlet adapters are available for #12AN, #16AN, #20AN, 1-1/4', 1-1/2' or 1-3/4' slip hose
Technical Specifications: - Belt Drives: Standard Olds design will clear Jessel belt drives and comparable belt drive systems.
- Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
- Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. The fitting needs to be ordered according to the size of the lower radiator hose.
- Amperage draw: Under normal use the pump will draw 6-7 amps.
- Overall Height Dimension: The standard pump is 6.60' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 5.9 lbs.
- 16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt optional motor on our pump. The 12-volt pump will work for limited use applications.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
BrandMEZIERE
Package Height4.7
Package Width8.4
Package Length13.9
Weight7.71 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
