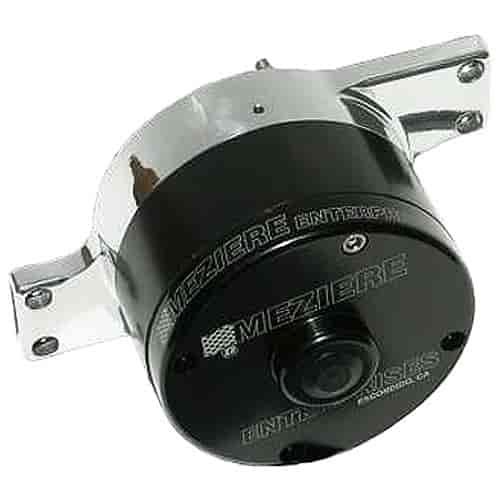

Electric Water Pump Replacement Center Section 35 GPM

Name: Electric Water Pump Replacement Center Section 35 GPM
Brand: MEZIERE
SKU: 680-WP150U16
Price: 336.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Replacement Center Section

Electric Water Pump Replacement Center Section

35 GPM

16-Volt Motor

Polished Finish

If you feel the need to carry a spare or replace a worn out pump, we can address that with our replacement center sections. These are easy, drop in units that fit most of our 100 series pumps and can be installed in just minutes.

Features:

Fits the following 100 series pumps: WP100, WP101, WP103, WP106, WP108, WP110, WP111, WP114, WP116, WP119 and WP125

Upgraded motor for 16-volt electrical systems

Suitable for street or drag strip use - 3000+ hour life expectancy

Show quality blue anodized finish

Standard motor provides 35 gallons per minute free flow rating

All stainless steel hardware included

Stainless steel large diameter main shaft with high performance ceramic seal

Technical Specifications:

Amperage draw: Under normal use the pump will draw 6-7 amps.

16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt optional motor on our pump. The 12-volt pump will work for limited use applications.

Keep Your Car Cool... Perfect for 12V or 16V Electrical System

Meziere's 100 Series Electric Water Pump is lightweight and flows 35+ gallons per minute. They are ideal for mild street and Sportsman drag cars. The pump housing, motor cap, and impeller are CNC-machined from 6061-T6 billet aluminum for superior corrosion resistance. The stainless steel impeller shaft runs through a 1-piece carbon-ceramic seal that isolates the epoxy-coated motor from coolant for years of reliable service. The motor has a radio frequency suppression circuit in the motor brush card to reduce ignition "RF" interference. These 100 Series pumps are available with two motor option, standard duty and heavy duty.

The HD (heavy duty) motors provide more power and RPM, increasing flow and pressure over the standard duty motors. HD motors are recommended for street cars and other continuous duty applications (where high flow model pumps are not available). Most pumps are machined with a 1" NPT port(s) to direct water into the pump using one of the inlet adapters that you choose to best suit your needs. Inlet adapters are available in slip-on rubber hose style to AN sizes, inlet fittings are sold separately and not included with pump. Most pumps and fittings are chrome, polished, or anodized. Longer inlets, extensions, and angle adapters also available.

Meziere pumps are American made with pride and quality far superior to any other performance aftermarket company. Don't be misled by the inflated flow numbers and outlandish claims of others. Meziere says what they mean and means what they say. The 2 year, unlimited mileage guarantee and full satisfaction money back guarantee should convince you that buying Meziere is buying value!
