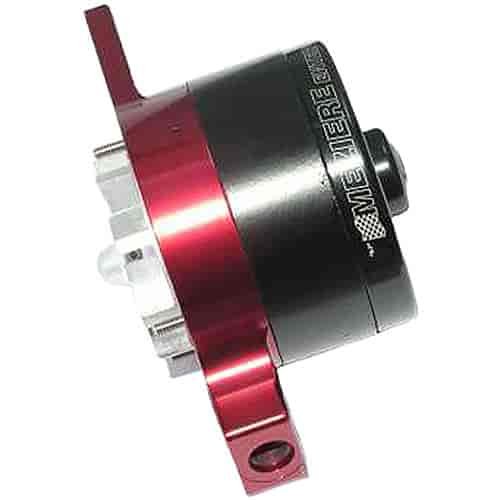

Electric Water Pump Replacement Center Section with High Pressure Port 35 GPM

Name: Electric Water Pump Replacement Center Section with High Pressure Port 35 GPM
Brand: MEZIERE
SKU: 680-WP155R
Price: 351.75 USD
Availability: InStock

^$351⁷⁵

Ships on 09/18/2026

Lowest Price Guarantee

Replacement Center Section with High Pressure Port

Electric Water Pump Replacement Center Section with High Pressure Port

35 GPM

Standard Motor

-06AN High Pressure Port

Red Anodized Finish

If you feel the need to carry a spare or replace a worn out pump, we can address that with our replacement center sections. These are easy, drop in units that fit most of our 100 series pumps and can be installed in just minutes.

Features:

Fits the following 100 series pumps: WP100, WP101, WP103, WP106, WP110, WP111, WP114, WP116, WP119 and WP125

High pressure port machined in to make easy work of auxiliary plumbing (ex: Meziere transmission pan with heat exchanger)

Suitable for street or drag strip use - 2500+ hour life expectancy

Show quality finish

Standard motor provides 35 gallons per minute free flow rating

All stainless steel hardware included

Stainless steel large diameter main shaft with high performance ceramic seal

Technical Specifications:

Port machined to accept standard -06AN fitting - o-ring boss type

Amperage draw: Under normal use the pump will draw 6-7 amps.

Part TypeWater Pump Center Section

BrandMEZIERE
