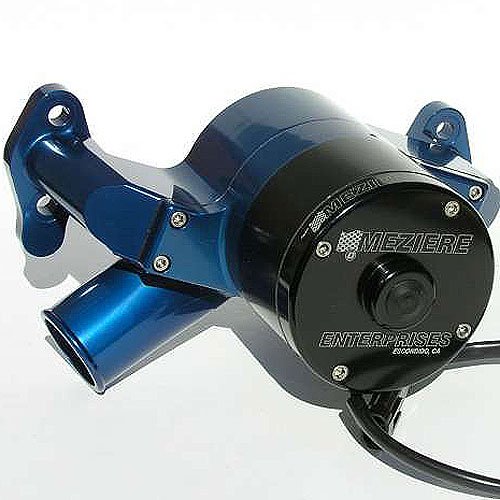

300 Series Electric Water Pump Small Block Chevy

Name: 300 Series Electric Water Pump Small Block Chevy
Brand: MEZIERE
SKU: 680-WP301B16
Price: 505.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy - Small Block

Small Block Chevy
55 GPM
16-Volt Motor
Blue Anodized Finish

The Meziere 300 series high flow pump changed the rules about using electric water pumps on high horsepower street, nitrous, blown, or boosted engines. Delivering 55 gallons per minute of flow, the 300 series pump offers great cooling solutions to high horsepower vehicles. Higher flow rates reduce the chance of detonation.
Features:
Fits small block Chevrolet
Upgraded motor for 16-volt electrical systems
Suitable for street or drag strip use - 3000+ hour life expectancy
Show quality finish
High flow design provides 55 gallons per minute free flow rating
All stainless steel hardware included
Light weight. Complete small block Chevy unit weighs only 7.4 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Pump will clear cam belt drives and most blower drives
Welded 1-3/4' inlet connection

Technical Specifications:
Belt Drives: Standard SBC design will clear Jessel belt drives and comparable belt drive systems.
Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
Finishing The System: This pump is supplied complete with gaskets and hardware. No additional items should be necessary for standard installations.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 7.28' long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 7.4 lbs.
16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt optional motor on our pump. The 12-volt pump will work for limited use applications.

Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard. A single-ported version of this pump is available at no additional cost.
