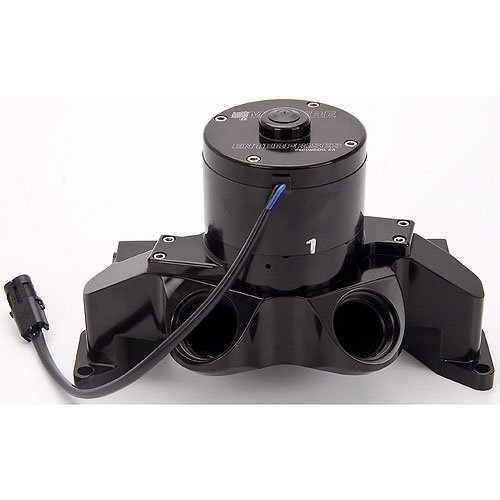

300 Series Electric Water Pump Big Block Chrysler

Name: 300 Series Electric Water Pump Big Block Chrysler
Brand: MEZIERE
SKU: 680-WP306S
Price: 851.30 USD
Availability: InStock

^$851³⁰

1 left in stock

Ships Today

Lowest Price Guarantee

Chrysler - Big Block

Big Block Chrysler
55 GPM
Black Anodized Finish

These high flow electric water pumps keep extreme Mopars cool, a big hit with the high compression and supercharged crowd. Meziere is proud to offer a true 55 gallon per hour electric water pump in the traditional Mopar configuration as well as a purpose built reverse flow configuration that directs the 'cooler' water to heads first - reduces hot spots and detonation. This pump requires Meziere 'WN' series fittings.
Includes:
Plugs for both driver and passenger sides
Drivers side adapter for standard mechanical temp sender
Adapter for 3/8' NPT electric sender

Features:
Fits big block Mopar B, RB, and Hemi
Suitable for street or drag strip use - 3000+ hour life expectancy
Show quality finish
High flow design provides 55 gallons per minute free flow rating
All stainless steel hardware included
Light weight. Complete big block Mopar unit weighs only 8.1 pounds!
Stainless steel large diameter main shaft with high performance ceramic seal
Pump will clear cam belt drives and most blower drives
Dual inlet ports machined to accept any of Mezieres 'WN-style' fittings

Technical Specifications:
Belt Drives: Standard Big Block Mopar design will clear Jessel belt drives and comparable belt drive systems.
Distributer Belt Drives: Spacers will be necessary to clear belt drive distributor systems.
Finishing The System: This pump is supplied complete with gaskets and hardware but without the inlet fitting. This should be ordered according to the size of your lower hose connection.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 7.28' long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 8.1 lbs.

Additional Notes: The standard 35GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
