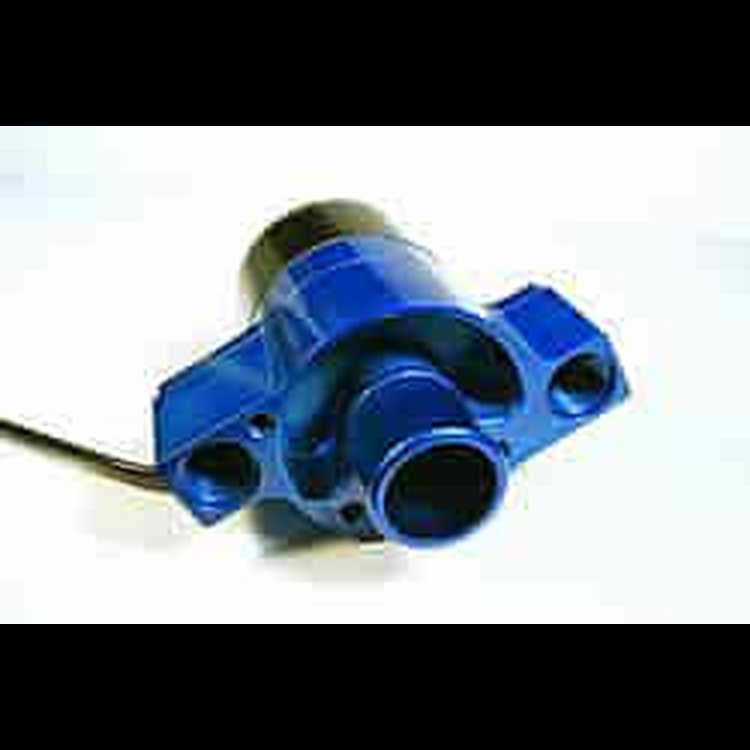

300 Series Remote Mount Bulkhead Electric Water Pump 55 gpm

Name: 300 Series Remote Mount Bulkhead Electric Water Pump 55 gpm
Brand: MEZIERE
SKU: 680-WP316B16
Price: 443.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

300 Series

Free-Flow Rating: 55 gpm

55 gpm
16V Motor
Anodized Blue

Features:
Remote mount bulkhead design for universal fit
Upgraded motor for 16-volt electrical systems
Suitable for street or drag strip use - 3000+ hour life expectancy
Show quality finish
Standard motor provides 55 gallons per minute free flow rating
Stainless steel hardware and 4130 mounting bracket included
Single inlet port accepts Meziere 'WN' style fittings
Dual outlet ports threaded -12AN o-ring for a wide variety of line connection options
Dual outlet ports provide tandem outlet lines perfect for V6, V8 or V10 applications
Stainless steel large diameter main shaft with high performance ceramic seal
'WN' style inlet fittings available for a wide variety of slip-on and AN hose connections
-12AN o-ring style outlet fittings available for -10AN, -12AN, -16AN, 5/8', 3/4', 1', or 1-1/4' slip hose.

Technical Specifications:
Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 5.50' long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 6.3 lbs.
16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt optional motor on our pump. The 12-volt pump will work for limited use applications.

Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
