Vehicle Info NeededMEZIEREPART NUMBER: 680-WP316U

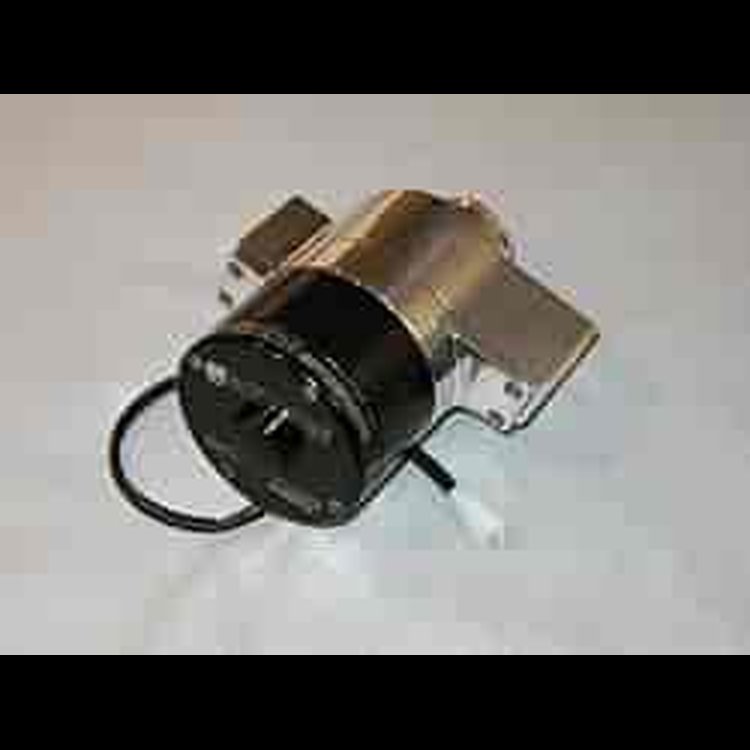

300 Series Remote Mount Bulkhead Electric Water Pump 55 gpm
$50848
Ships on 09/17/2026
Lowest Price Guarantee300 Series55 GPM Free-Flow Rating
- 300 Series Remote Mount Bulkhead Electric Water Pump
- 55 gpm
- Standard Motor
- Polished
Features: - Remote mount bulkhead design for universal fit
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Show quality finish
- Standard motor provides 55 gallons per minute free flow rating
- Stainless steel hardware and 4130 mounting bracket included
- Single inlet port accepts Meziere 'WN' style fittings
- Dual outlet ports threaded -12AN o-ring for a wide variety of line connection options
- Dual outlet ports provide tandem outlet lines perfect for V6, V8 or V10 applications
- Stainless steel large diameter main shaft with high performance ceramic seal
- 'WN' style inlet fittings available for a wide variety of slip-on and AN hose connections
- -12AN o-ring style outlet fittings available for -10AN, -12AN, -16AN, 5/8', 3/4', 1', or 1-1/4' slip hose.
Technical Specifications: - Finishing The System: This pump is supplied complete with hardware but without the inlet and outlet fittings. The fittings need to be ordered according to the type and size of the desired hose connections.
- Amperage draw: Under normal use the pump will draw 11-12 amps.
- Overall Height Dimension: The standard pump is 5.50' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 6.3 lbs.
Additional Notes: The standard 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only. This model does not accept heater or bypass hoses as a standard.
Part TypeWater Pump
BrandMEZIERE
Package Height5.1
Package Width8.4
Package Length13.7
Weight7.2 PG
Weight6.3 lb (2.857 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredNo
Inlet Hose Size1.75 in (44.45 mm)
Amp Draw10.00 amps
Hose Adapter IncludedYes
QuantitySold individually
Part FitmentSemi Universal
Flow Rate @ 12 Volts (Gpm)55 GPM
Inlet Hose AttachmentNipple
Pump FinishPolished
Vendor Part NumberWP316U
Package Qty1
Package TypeEA
