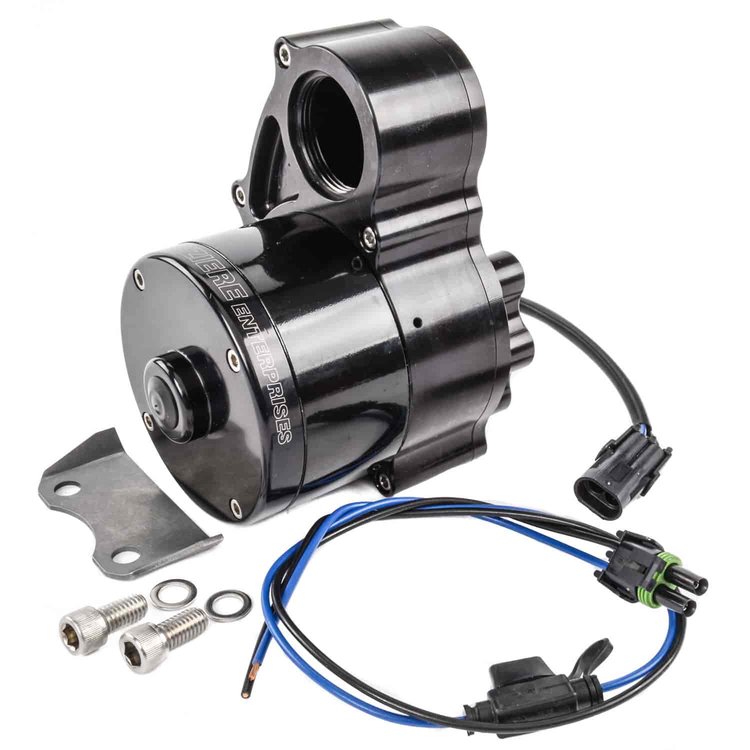

300 Series High-Flow Inline Electric Water Pump Single Outlet
InfoVehicle Info Needed
MEZIEREPART NUMBER: 680-WP336S

300 Series High-Flow Inline Electric Water Pump Single Outlet

$58351
2 left in stock
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Items You Need

Single Fuel Pump Harness and Relay Kit 30 Amp

JEGS

Single Fuel Pump Harness and Relay Kit 30 Amp

Part Number : 555-10564
$3199$34.99
You Save$3.00
Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28045
$1899$20.99
You Save$2.00
Razor Scraper with Safety Cap

JEGS

Razor Scraper with Safety Cap

Part Number : 555-80603
$699$7.99
You Save$1.00

Single Outlet Pumps
    300 Series High-Flow Inline Electric Water Pump
  • Single Outlet
  • 55 gpm
  • 20AN Inlet
  • 20AN Outlet
  • Anodized Black

    Requires a 20AN hose adapter fitting to connect to your application, which can be found here.

Built to Flow 55 Gallons Per Minute!
Perfect for 12- and 16-Volt Electrical Systems

This water pump is Meziere's most versatile to date, combining an inline design, 55 gallons per minute free-flow rating, and interchangeable fittings. Meziere 300 Series Water Pumps move more water and produce more pressure than any other electric pump on the market, which means better protection for demanding high-horsepower engines. Meziere also makes this pump with a built-in thermostat circuit to provide the option of adding a true thermostatic circuit to expedite engine warm-up (beneficial for engines with aluminum blocks because their tighter clearances require heat to avoid excessive wear). The pump housing, impeller, and motor cap are CNC-machined from 6061-T6 billet aluminum for superior corrosion resistance. The stainless steel impeller shaft runs through a 1-piece carbon-ceramic seal to isolate the epoxy-coated motor from coolant for lasting reliability. The motor also has a radio frequency suppression circuit in the motor's brush card to reduce ignition (RF) interference. Fittings sold separately.

Show More

300 Series Inline Water Pump Features:

  • Single or Dual Outlets
  • Suitable for 12-Volt and 16-Volt Electrical Systems
  • Draws 11-12 amps under normal use
  • Provides 55 Gallons Per Minute Free Flow Rating
  • Billet aluminum pump housing, impeller, and motor cap
  • Stainless steel hardware, including 4130 mounting bracket
  • Stainless steel impeller shaft with 1-piece carbon-ceramic seal
  • Pumps with thermostat circuit provide quicker engine warm-up cycle
  • Pump Weight: 6.2 pounds without thermostat circuit; 7.5 pounds with thermostat circuit
  • Length from Mounting Surface to Pump Tip: 5.2'' standard; 8.3'' with thermostat circuit
  • 2-Year Unlimited Mileage Guarantee

Technical Notes:

  • Care should be taken that the pump is not running while charging.
  • To finish the system, hardware is included but hose fittings are not. Choose fittings based on the size and type of hose connection.
  • Single inlet/outlet port accepts Meziere ''WN'' Fittings. Dual outlet ports accept Meziere -16AN O-Ring Fittings.
  • On pumps with thermostat circuit, thermostat port accepts any Meziere ''WN'' Fittings.



Part TypeWater Pump
Product LineMeziere 300 Series High-Flow Inline Electric Water Pumps
BrandMEZIERE
Package Height6.4
Package Width6.4
Package Length6.5
Weight6.85 PG
Weight6.2 lb (2.812 kg)
Part CategoryPerformance Parts
Pump MaterialAluminum
Hose Adapter RequiredYes
Amp Draw10.00 amps
Hose Adapter IncludedNo
QuantitySold individually
Part FitmentSemi Universal
Flow Rate @ 16 Volts (Gpm)55 GPM
Flow Rate @ 12 Volts (Gpm)55 GPM
Product Weight6.2 lb (2.812 kg)
Pump FinishBlack anodized
Vendor Part NumberWP336S
Package Qty1
Package TypeEA
