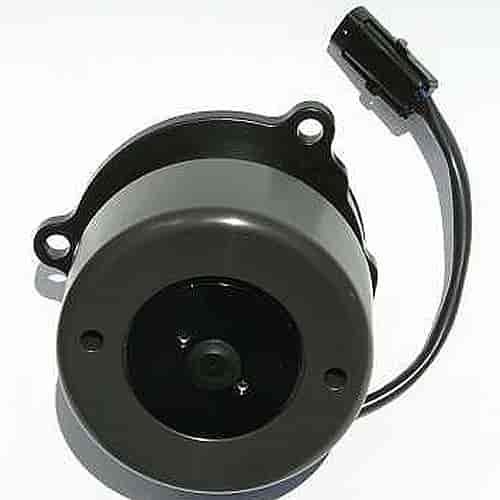

300 Series Electric Water Pump with Undersize Blower Drive Clearanced Idler Pulley Ford Modular 4.6L / 5.4L / V10 1996-Up

Name: 300 Series Electric Water Pump with Undersize Blower Drive Clearanced Idler Pulley Ford Modular 4.6L / 5.4L / V10 1996-Up
Brand: MEZIERE
SKU: 680-WP347S
Price: 600.19 USD
Availability: InStock

^$600¹⁹

Ships on 09/23/2026

Lowest Price Guarantee

Ford - Modular

Ford Modular 4.6L / 5.4L / V10 1996-Up
Freewheeling Idler Pulley for Stock Serpentine Belt Routing Configuration
55 GPM
Black Finish

Specifically for street driven and fully equipped race cars. Installation is nearly identical to the factory pump and can be completed in 2-3 hours. Innovative design makes for an easy installation. Unbolt your factory pump and bolt on an easy 11-14 horsepower with our street style water pump. An idler is incorporated onto the pump so your belt routing remains in its stock configuration. Aftermarket underdrive pulley sets may require a shorter serpentine belt. Provides cooler running in traffic. Cobra Note: 2003-2004 Cobra engines will not accept our modular pumps. There will be clearance issues.

Features:
Fits Ford modular engines
Idler pulley diameter: 4.70'
Idler design lets you keep all of your serpentine belt driven accessories
Undersized idler built specifically for Kenny Bell blower compatibility
Suitable for street or drag strip use - 3000+ hour life expectancy
Show quality finish - hard clear anodized pulley
Standard motor provides 55 gallons per minute free flow rating
Stainless steel large diameter main shaft with high performance ceramic seal

Technical Specifications:
Finishing The System: This pump is supplied complete. No additional items should be necessary. If you are installing the pump into a stock type vehicle you may want to consider relay kit #WIK346
Amperage draw: Under normal use the pump will draw 11-12 amps.
Overall Height Dimension: The standard pump is 3.75' long from the mounting surface to the tip of the pump.
Pump Weight: This application weighs 6.9 lbs.
