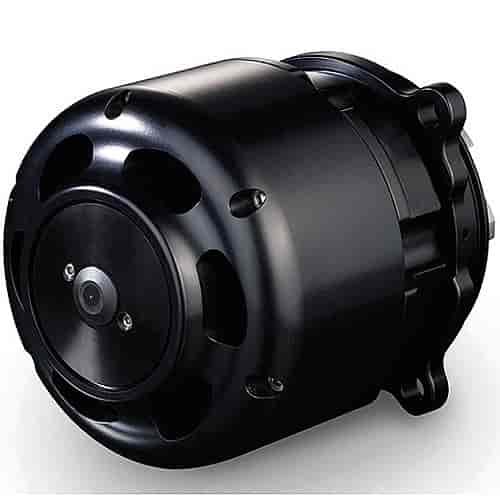

300 Series Electric Water Pump with Supercharger Idler Pulley Ford Modular 4.6L / 5.4L / V10 1996-Up
InfoVehicle Info Needed
MEZIEREPART NUMBER: 680-WP349S

300 Series Electric Water Pump with Supercharger Idler Pulley Ford Modular 4.6L / 5.4L / V10 1996-Up

$71984
ShippingShips on 09/23/2026
Lowest PriceLowest Price Guarantee

Ford - Modular
    300 Series Electric Water Pump with Supercharger Idler Pulley
  • Ford Modular 4.6L / 5.4L / V10 1996-Up
  • Freewheeling Idler Pulley for Stock Serpentine Belt Routing Configuration
  • 55 GPM
  • Black Finish


    Specifically for street driven and fully equipped race cars. Installation is nearly identical to the factory pump and can be completed in 2-3 hours. Innovative design makes for an easy installation. Unbolt your factory pump and bolt on an easy 11-14 horsepower with our street style water pump. An idler is incorporated onto the pump so your belt routing remains in its stock configuration. Aftermarket underdrive pulley sets may require a shorter serpentine belt. Provides cooler running in traffic. Cobra Note: 2003-2004 Cobra engines will not accept our modular pumps. There will be clearance issues.

    Features:
  • Fits Ford modular engines
  • Idler pulley diameter: 5.10'
  • Dual bearings support idler for blown applications (Not compatible with 2003-2004 factory supercharged Cobra with secondary drive belt)
  • Idler design lets you keep all of your serpentine belt driven accessories
  • Suitable for street or drag strip use - 3000+ hour life expectancy
  • Show quality black finish
  • Standard motor provides 55 gallons per minute free flow rating
  • Stainless steel large diameter main shaft with high performance ceramic seal

    Technical Specifications:
  • Finishing The System: This pump is supplied complete. No additional items should be necessary. If you are installing the pump into a stock type vehicle you may want to consider relay kit #WIK346
  • Amperage draw: Under normal use the pump will draw 11-12 amps.
  • Overall Height Dimension: The standard pump is 5.00' long from the mounting surface to the tip of the pump.
  • Pump Weight: This application weighs 7.1 lbs.
Part TypeWater Pump
BrandMEZIERE
Package Height5.8
Package Width6.5
Package Length10.0
Weight10.22 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
