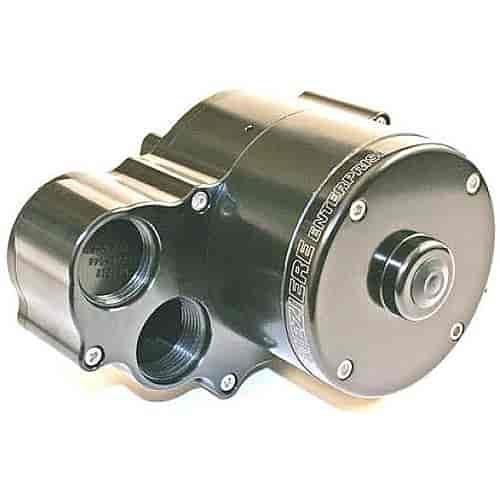

Dual Outlet Water Pump
- 300 Series Radiator Mounted Electric Water Pump
- Dual Outlet
- 55 GPM
- 16-Volt Motor
- Black Anodized Finish
Radiator mounted pumps fill many different needs.When an engine mounted pump is not available or space limits the ability to use one, the radiator mounted pumps offer a creative solution. Our pumps can be configured to use almost any size line. All of our pumps are built for cooling systems and can operate properly in a harsh environment.
Features: - Radiator mounted design can be added to most aluminum radiators
- Suitable for street or drag strip use - 3000+ hour life expectancy
- Upgraded motor for 16-volt electrical systems
- Show quality black anodized finish
- Standard motor provides 55 gallons per minute free flow rating
- Radiator mount weld plate included
- Dual outlet ports accept any Meziere -16AN style fittings
- Stainless steel large diameter main shaft with high performance ceramic seal
- -16AN style fittings available for -12AN, -16AN, 1' or 1-1/4' slip hose.
Technical Specifications: - Finishing The System: This pump is supplied complete with hardware but without the fitting. The fitting needs to be ordered according to the type and size of the desired hose connection.
- Amperage draw: Under normal use the pump will draw 11-12 amps.
- Overall Height Dimension: The standard pump is 5.20' long from the mounting surface to the tip of the pump.
- Pump Weight: This application weighs 6.2 lbs.
- 16-volt systems: When purchasing a pump for a 16-volt system we recommend the 16-volt optional motor on our pump. The 12-volt pump will work for limited use applications.
BrandMEZIERE
Package Height6.4
Package Width6.5
Package Length6.7
Weight6.7 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
