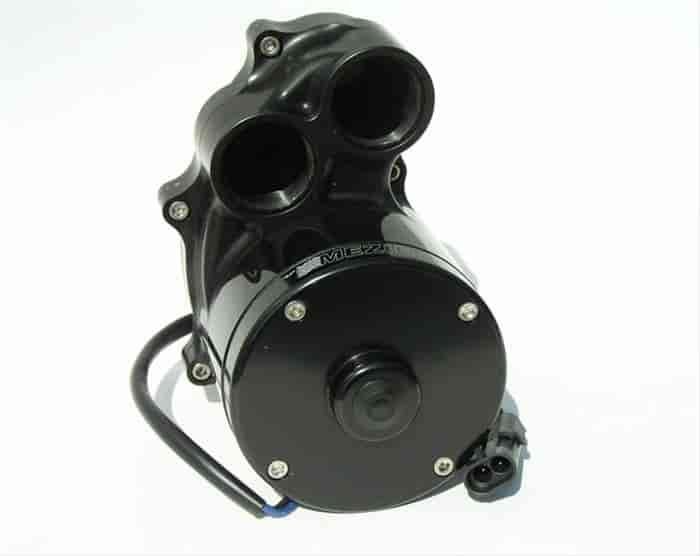

Vehicle Info NeededMeziere 300 Series Remote Mount Electric Water Pump 55 gpm
Ships Today
Lowest Price Guarantee- Remote/universal inline design
- Lightweight design. This pump is a full pound lighter than our standard unit.
- Suitable for street or drag strip use.
- 2400+ hour life expectancy.
- Show quality black anodized finish.
- All stainless steel hardware and 4130 mounting bracket is included.
- Lightweight. The complete standard unit weighs only 6.2 pounds!
- Stainless steel large diameter main shaft with a high-performance ceramic seal.
- Single inlet port threaded #20AN to accept our standard WN Style fittings.
- Dual outlet ports threaded #16AN will accept a wide variety of fittings.
- #12AN, #16AN, #20AN, 1¼", 1½" or 1¾" slip hose inlet fitings available.
- Inline design works well as a stand-alone or as a booster pump.
Built to Flow 35, 42, or 55 GPM!
Perfect for 12- and 16-Volt Electrical Systems
Remote pumps are the solution when an engine-mounted pump is not available or space limits the ability to use one. These bulkhead-style pumps mount to the frame, firewall, or back of a motor plate. All plumbing inlets/outlets are on one side to install easily and to eliminate any need for a water manifold or distribution block. Standard 100 Series Pumps flow 35 gpm while heavy-duty 100 Series Pumps flow 42 gpm. The 300 Series offers a high-flow water pump at 55 gpm. The pump housing, motor cap, and impeller are CNC-machined from 6061-T6 billet aluminum, and a stainless steel impeller shaft runs through a carbon-ceramic seal to isolate the epoxy-coated motor from coolant. The motor also has a radio frequency suppression circuit to reduce ignition (RF) interference.
Show More
Features:
- Remote Mount Bulkhead Design for Universal Fit
- Suitable for 12-Volt and 16-Volt Electrical Systems
- All Stainless Steel Hardware and 4130 Mounting Bracket Included
- Billet Aluminum Impeller, Pump Housing, and Motor Cap
- Stainless Steel Impeller Shaft
- 1-Piece Carbon-Ceramic Seal
- 100 Series Free-Flow Rating: Standard Motor 35 or Heavy Duty Motor 42 gallons per minute
- 100 Series Pumps: 1'' NPT Single Inlet Port and Dual -12AN O-Ring Outlet Ports
- The standard 35 gpm pump is suitable for normally aspirated engines up to 650 HP
- 300 Series Free-Flow Rating: 55 gallons per minute
- 300 Series Pumps: Single Inlet Port Accepts Meziere ''WN'' Fittings and Dual -12AN O-Ring Outlet Ports
- Supercharged, turbocharged, and high-compression high-horsepower applications should use the 55 gpm pump
- 2-Year Unlimited Mileage Guarantee
- Available Polished, Chrome, Black, Blue, or Red
-
