Made in USA

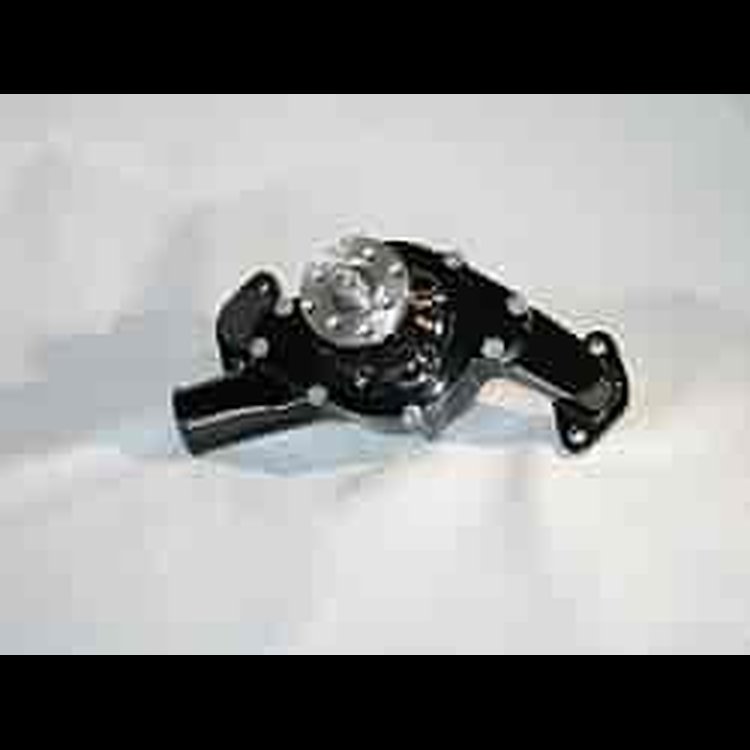

400 Series Mechanical Water Pump Big Block Chevy Short-style
Product Discontinued
MEZIEREPART NUMBER: 680-WP400S

400 Series Mechanical Water Pump Big Block Chevy Short-style

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy - Big Block - Standard Rotation Pumps
  • No Heater/Bypass Ports
    • 400 Series Mechanical Water Pump
    • Big Block Chevy; Short-style
    • Standard Rotation
    • Without heater and bypass ports
    • Black Anodize Finish


      This water pump model features:
    • Fits big block Chevrolet
    • Suitable for all street or racing applications.
    • Large Chevrolet bearing and seal pack provide excellent reliability.
    • Welded 1-3/4' inlet port for lower hose.
    • Show quality chrome finish
    • All stainless steel hardware included.
    • All billet body and impeller provide tight clearances for excellent flow characteristics.
    • Pump will clear cam belt drives and most blower drives.
    • Standard V-belt rotation
    • Does not have ports for heater and bypass connections

    Meziere pulled out all the stops with this belt-driven billet aluminum water pump and built an outstanding piece that will be the standard by which others are measured. The real beauty, however, appears on your temperature gauge! Top-end figures match the best racing pumps on the market and off-idle flow is 5 to 7 gpm higher than any competitor. 400 Series Mechanical Water Pumps are race-bred inside and show-quality outside. They save racers over 10 HP compared to a stock pump and eliminate most low-speed cooling problems for street rodders. For small block Chevy and big block Chevy (standard or reverse rotation) and small block Ford, these water pumps are all billet. Their appearance and unmatched low-speed flow numbers make them popular with the street rod crowd while their high-RPM performance can cool most race engines.

    Show More

    Features

    • CNC-Machined Billet Aluminum Housing
    • Show-Quality Finish
    • 3/4'' Roller Bearings
    • 3'' Diameter CNC-Machined Impeller
    • Carbon Ceramic Seal
    • Triple Bolt Pattern Pulley Flange
    • All Stainless Steel Hardware

    Part TypeWater Pump
    Product LineMeziere 400 Series Mechanical Water Pumps
    BrandMEZIERE
    Package Height6.5
    Package Width7.6
    Package Length12.7
    Weight6.43 PG
    Part CategoryPerformance Parts
    Pump MaterialBillet aluminum
    Pump FlowHigh-volume
    Water Pump Inlet Diameter1.75 in (44.5 mm)
    Pilot Diameter0.625 in (15.9 mm)
    QuantitySold individually
    Water Pump RotationClockwise
    Part FitmentSemi Universal
    Pump FinishBlack anodized
    Vendor Part NumberWP400S
    Package Qty1
    Package TypeEA
