Vehicle Info NeededMILE MARKERPART NUMBER: 694-70-50080C

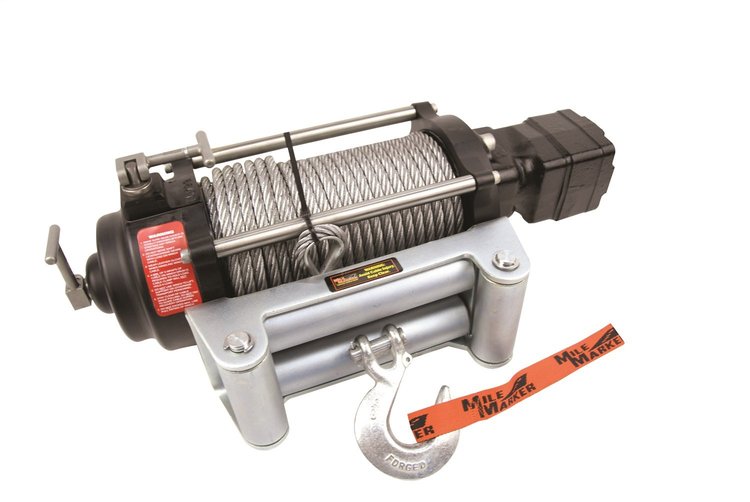

H9000 Hydraulic Winch 9,000 lb Capacity
$1,64900
Ships on 11/05/2026
Lowest Price Guarantee- H9000 Hydraulic Winch
- 9,000 lb Capacity
- Motor: 14 cubic inch
- Net weight: 93 lbs
NOTE: Requires Valve Adapter Kit to Install - Mounts To Front Or Rear Of Vehicle
- Can Be Permanent Or Detachable
- Free spooling; Mechanical Lock
- Sealed Against Elements; Can Be Used Under Water
- Corrosion Resistant
- Stainless Steel Tie Bars And Fasteners
- Reversible Mounting
- Limited Warranty
The Mile Marker H Series Hydraulic Winch can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system. This system is independent from its solenoid control valve to give more freedom in mounting options and vehicle application. The installation of one of the H Series models (H9000, H10500, and H12000) requires a vehicle specific 34-Series valve adapter kit.
Features:
- Submersible
- Continuous Duty
- Two-Speed Operation
Show More
- Heavy Duty Construction
- Smooth Operation
- Remote Solenoid Valve for Custom Installation
- Mechanical Lock
- Freespooling
- Integrated Solenoid Valve
- Corrosion Resistant
- Stainless Steel Tie Bars and Fasteners
- 14 Cubic Inch Motor
- Roller Fairlead
- Reversible Mounting on 3 Sides (H12000 Only)
- Ductile Iron Body (H12000 Only)
- Gear Train: Planetary
- Gear Ratio: 6:1
- Control Pendant: Not Included, Requires 34 Series Kit
- Cable: 3/8'' x 100' (nominal 14,400 lbs)
- Drum Size: 2.5'' x 9''
- Bolt Pattern: 4 Bolt, 4.5'' x 10''
- Power Steering Min. Requirements: 3.5 GPM @ 1500 psi
Part TypeWinch
Product LineMile Marker H Series Hydraulic Winches
BrandMILE MARKER
Package Height10.0
Package Width14.0
Package Length27.0
Weight68.0 PG
Part CategoryAccessories
TypeAutomotive
VoltageHydraulic
Rated Single Line Pull (Lbs.)9000
Part FitmentDirect Fit
Vendor Part Number70-50080C
Package Qty1
Package TypeEA
