Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

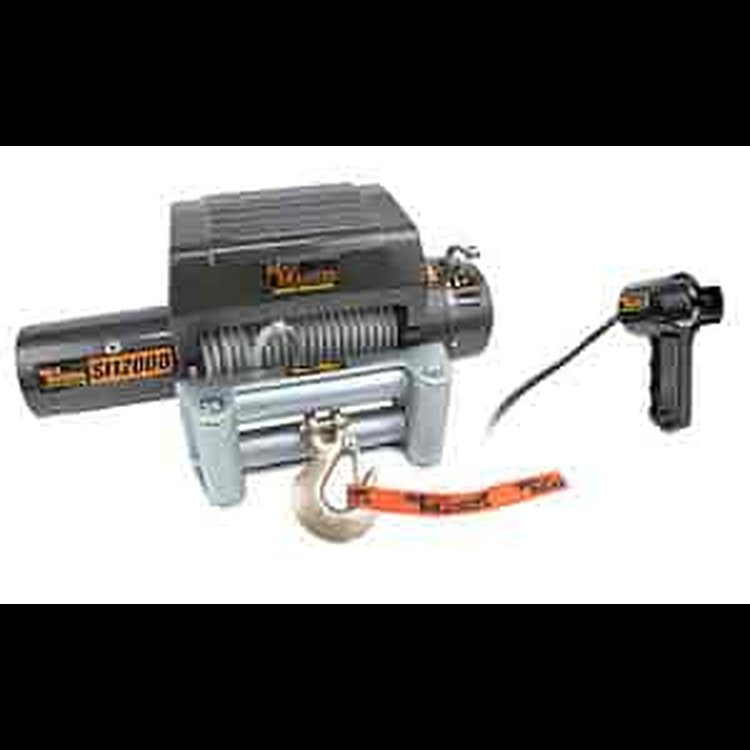

- SI12000 Electric Winch
- Rated Line Pull: 12000 lbs
- Gear Train: 3-Stage Planetary
- Gear Ratio: 296:1
- Motor: Series Wound, 4.8 hp, 12 / 24 V
- Control Pendant: Power In, Power Out Remote, 12'
- Dimensions: 22.25" x 6.25" x 8"
- Planetary Gear System For Fast Line Speed
- Automatic Load-Holding Brake
- Free Spooling
- Power In And Out
- Low Electric Current
- Heavy Duty Series Wound Motors and ruggedplanetary gear sets are the backbone of this expeditiongrade winch series. With robust controls,sealed solenoids, and an integrated kill switch,the SEC series is a proven winch design at an unmatchedvalue.
- Powerful Series Wound Motors
- Rugged Planetary Gear Sets
- Integrated Solenoid Housing
- Power In, Power Out Controls
- Automatic Load Holding Brake
- Galvanized Roller Fairlead
- 100 Feet Galvanized Aircraft Cable
- Rated Line Pull: 12000 lbs
- Gear Train: 3-Stage Planetary
- Gear Ratio: 296:1
- Motor: Series Wound, 4.8 hp (3.6 KW), 12 / 24 V
- Control Pendant: Power In, Power Out Remote, 12'
- Dimensions (LxWxH): 22.25" x 6.25" x 8"
- Synthetic Rope: 3/8" x100' (nominal 14400 lbs, 6531 kg)
- Drum Size: 2.5" x 9"
- Net weight: 92 lbs
- Bolt Pattern: 4 Bolt Pattern, 4.5" x 10"
Sharing the same Heavy Duty Series Wound Motorsand rugged planetary gear sets of the SECseries, the SI Series is a one piece winch and solenoidcombination for a finished look and simplifiedinstallation.
Features:
Part TypeWinch
Product LineMile Marker SI12000 Tough Series Electric Winch
BrandMILE MARKER
Package Height8.75
Package Width15.0
Package Length26.0
Weight102.0 PG
Part CategoryReplacement Parts
TypeAutomotive
Vendor Part Number76-50152
Package Qty1
Package TypeEA
