Vehicle Info NeededMILE MARKERPART NUMBER: 694-77-50112BW

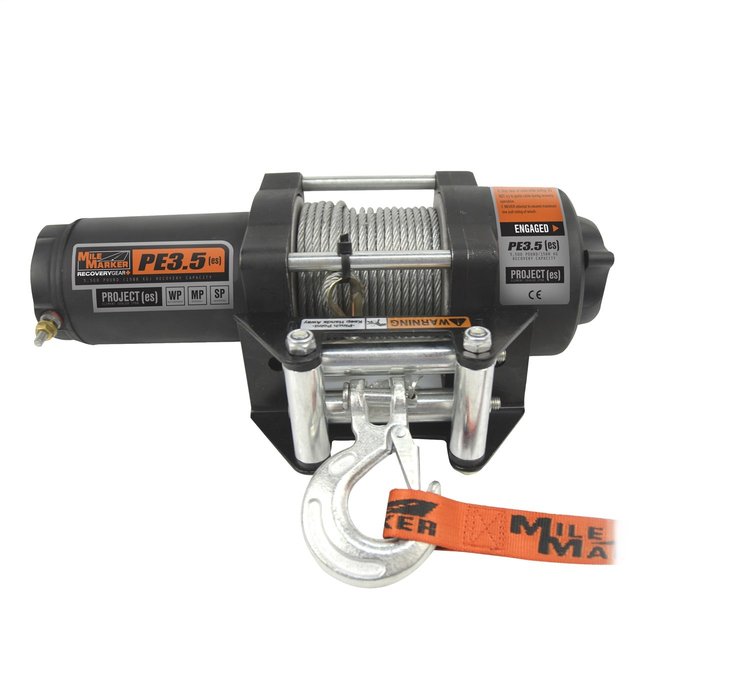

3500lb Element Sealed ATV/UTV Winch Waterproof
$34900
Ships on Nov 02, 2026
Lowest Price Guarantee- 3500lb Element Sealed ATV/UTV Winch
- Waterproof
The Mile Marker ATV/UTV Tough Series Winch is Mile Markers fastest winch ever! Includes both a handheld remote control as well as a handlebar mounted remote control providing "power in" and "power out" functions. Features 300 amp rated solenoid, fast line speeds, redesigned braking system, free spooling, roller fairlead, and all metal planetary gearing. 2500lb rated line pull with 7/32" cable x 50'. Dimensions are 13"L x 4.1"W x 4.2"H.
Show More
- Handheld remote and handlebar mounted remote
- Provides power in and out
- 3500lb rated line pull
- 300 amp rated solenoid
- 7/32" cable x 50'
- Free spooling
- Roller fairlead
- All metal planetary gearing
- Redesigned braking system
- Gear Train: 3-Stage Planetary
- Gear Ratio: 153:1
- Motor: Permanent Magnet, 2 hp (1.5kw), 12 VDC
- Control Pendant: Illuminated Joystick Remote, 12'
- Dimensions (LxWxH): 13.0" x 4.1" x 4.2"
- Cable: 7.32" x 50' (nominal 5600 lbs, 2540 kg)
- Drum Size: 1.5" x 3.15"
- Net weight 25 lbs
- Bolt Pattern: 4 Bolt Pattern, 4.88" x 3"
Part TypeWinch
Product LineMile Marker ATV/UTV Tough Series 3500lb Winch
BrandMILE MARKER
Package Height7.8
Package Width13.2
Package Length16.7
Weight30.77 PG
Part CategoryAccessories
TypeATV
Voltage12 DC
Rated Single Line Pull (Lbs.)3500
Part FitmentDirect Fit
Vendor Part Number77-50112BW
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
