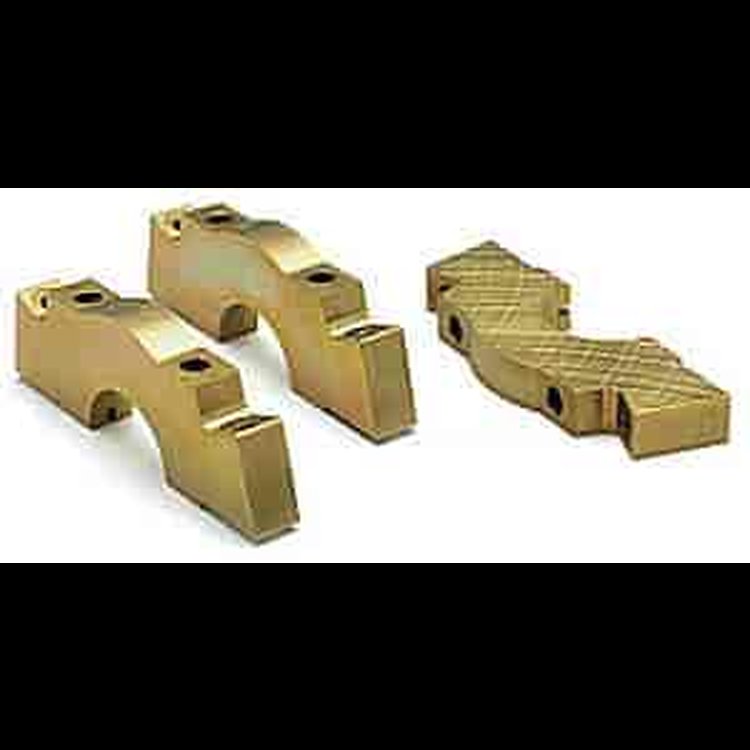

Main Caps Big Block Chevy 396-454
InfoVehicle Info Needed
MILODONPART NUMBER: 697-11205

Main Caps Big Block Chevy 396-454

$45995
ShippingShips on 11/12/2026
Lowest PriceLowest Price Guarantee

Big Block Chevy
    Main Caps
  • Big Block Chevy 396-454
  • Straight Bolts

Milodon's Main Caps are designed to strengthen factory 2 and 4 bolt blocks and at the same time stop 'cap walk'. These main caps offer more cross sectional strength do to the side angled bolts, delivering more side pull of the side walls of the block and not on the flimsy main web area. The side bolts heavily load the cap against the register step, therefore reducing the chance of bearing damage and horsepower loss. The main caps are CNC machined from high strength ductile material, which has proper balancer of strength and rigidity. All necessary bolts, washers and drill bushings are included in the kit.

Show More

Features:

  • Strengthens factory 2 and 4 bolt blocks
  • Stops 'cap walk'
  • More cross sectional strength
  • Reduces bearing damage and horsepower loss
  • CNC machined from high strength ductile material
  • Includes bolts, washers and drill bushings

Note: For installation, only .030" of material removal is required, which will allow 100% cleanup on a damaged or crooked block. The drill bushing used to drill and tap the side bolt holes is included in the kit. The side bolts can be installed by anyone with a hand drill and a tap. If the block has square main registers, the block needs only a standard align bore to finish the job. Milling the mains is only necessary if the main registers are not square.

Part TypeCrankshaft Main Cap Girdle
Product LineMilodon Main Caps
BrandMILODON
Package Height3.6
Package Width5.8
Package Length9.3
Weight15.11 PG
Part CategoryPerformance Parts
Main Cap Retention StyleBolt
Main Cap MaterialDuctile iron
Main Cap Fastener Quantity4-bolt
Main Cap Position3-center
Machine Work RequiredYes
Main Cap Fastener StyleStraight
QuantitySold as a set
Part FitmentSemi Universal
Main Cap Fasteners IncludedYes
Vendor Part Number11205
Package Qty1
Package TypeEA
