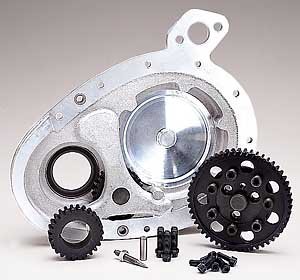

Milodon's professionally proven ''Fixed Idler Gear'' system is capable of maintaining the precise cam timing required to allow the release of this power. Cam timing adjustments are effortless to perform via the two piece cam gear and cam hub assembly that is accessible on the Full Cover Style Assembly through the removable billet cam cover. The adjustment is achieved by changing the position of the cam gear on the cam hub. A simple bolt-on procedure with no offset dowels or keys to mess with. Each movement is detailed on a provided chart which gives the exact position for the desired amount of advance or retard, once top dead center is found.
A professional style three gear unit, unlike a four gear type, does not rob any power from the engine to run. The billet steel gears mounted solidly to the block, will not and can not, allow the timing to vary, unlike a flexible belt or chain. These factors add up to increased horsepower output and higher RPM potential.

Features:

• Fixed idler gears offer more power than a timing chain or a floating idler gear
• Maintains set timing at high revs
• Steel billet gears do not flex unlike all other flexible chaina or belt drives
• Allows precise camshaft degreeing using adjustable bolt pattern cam gear and hub assembly
• Incorporates a full cast aluminum front cover with a removable cam cover that allows quick and easy access to the cam gear for adjustments and cam removal
• Fixed idler gear mounts solidly into the main cover itself which fully compensates for any crank position
• Uses positive cam end play adjustment and a three-piece roller bearing behind the cam gear to control cam movement, reduce power-robbing drag and stop block face wear
• No block machining is required
• Stock mechanical fuel pump may be used on some engines
