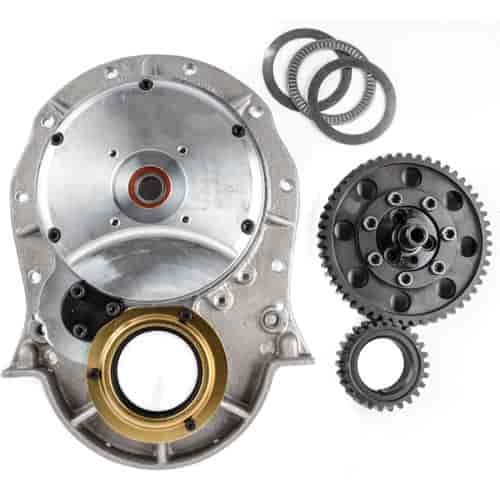

Gear Drive Big Block Chevy 1965-90 Mark-IV

Vehicle Info Needed

MILODONPART NUMBER: 697-12700

Gear Drive Big Block Chevy 1965-90 Mark-IV

Name: Gear Drive Big Block Chevy 1965-90 Mark-IV
Brand: MILODON
SKU: 697-12700
Price: 1040.95 USD
Availability: InStock

^$1,040⁹⁵

Ships on 09/08/2026

Lowest Price Guarantee

Chevrolet

Big Block Chevy 1965-90 Mark-IV
Injected/Blown Style

Injected/blown style does not use the stock water pump because they use a cam driven hex. Blown engines will require a fuel pump extension.
2.5' Extension with 3/8' hex is #697-12950.
4.5' Extension with 3/8' hex is #697-12955.
5.5' Extension with 3/8' hex is #697-12960.

Part TypeTiming Chain and Gear Set

BrandMILODON

Package Height4.2

Package Width11.1

Package Length12.9

Weight9.73 PG

Part CategoryPerformance Parts

NoisyYes

Gaskets IncludedNo

Thrust Bearing IncludedYes

Offset Bushings IncludedNo

Camshaft Gear Attachment3-bolt

Maximum Advance/Retard At Crankshaft12 degree

QuantitySold as a kit

Maximum Advance/Retard At Camshaft6 degree

Part FitmentSemi Universal

Gear MaterialSteel billet

Gear Drive Idler StyleSingle idler

Vendor Part Number12700

Package Qty1

Package TypeEA
