MILODONPART NUMBER: 697-30260

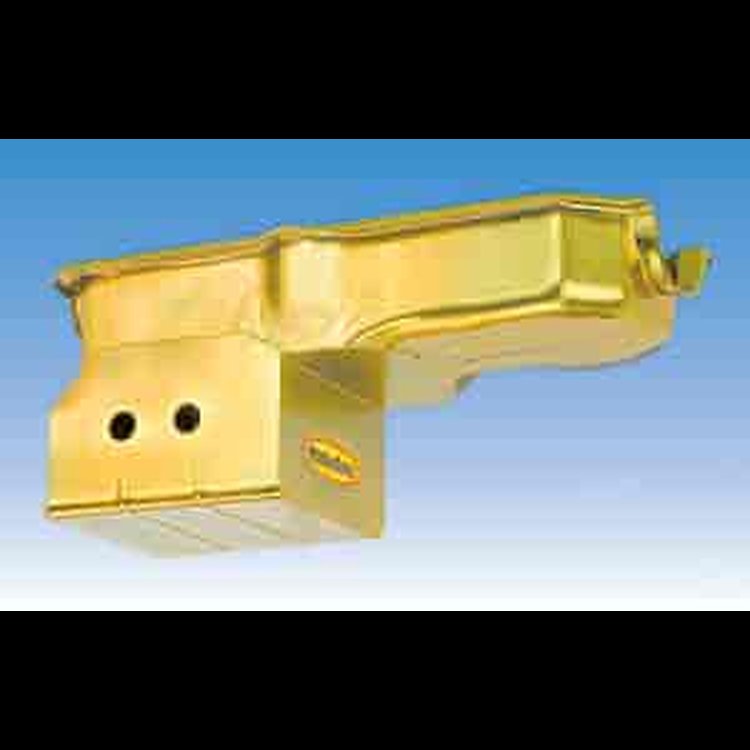

AMC Oil Pan 304/343/401ci

Name: AMC Oil Pan 304/343/401ci
Brand: MILODON
SKU: 697-30260
Price: 669.95 USD
Availability: InStock

^$669⁹⁵

Ships on 09/11/2026

Lowest Price Guarantee

AMC

304/343/401ci
8-Quart Capacity Plus Filter
9'' Deep Sump
External Pick-Up

Same basic design as the 697-30250 pan, but intended for all- out racing applications. The pick-up system is designed to bypass the meager stock internal oil passages with an external swivel pick-up system using large 12AN aircraft braided line. Holes are provided in pan to mount swivel either a single or dual line system. The single line system is good to about 7000 RPM and dual line adequate to about 7500 RPM plus. Use pick-up 697-24050 or 697-24070.

Part TypeOil Pan

BrandMILODON

Package Height13.1

Package Width13.7

Package Length25.5

Weight12.3 PG

Part CategoryPerformance Parts

Oil Pan Capacity8 quarts

Hardware IncludedNo

Dipstick ProvisionNo

BaffledYes

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishGold iridited

Oil Pan MaterialSteel

Maximum Stroke With Oe Rod4 in (101.6 mm)

Gaskets IncludedNo

Oil Pan Depth9 in (228.6 mm)

Rear Main Seal Style2-piece

Sump LocationRear

Crank Scraper IncludedNo

Windage Tray IncludedNo

Part FitmentSemi Universal

Kicked OutNo

Stroker ClearancedYes

Vendor Part Number30260

Package Qty1

Package TypeEA
