Vehicle Info NeededMILODONPART NUMBER: 697-30401

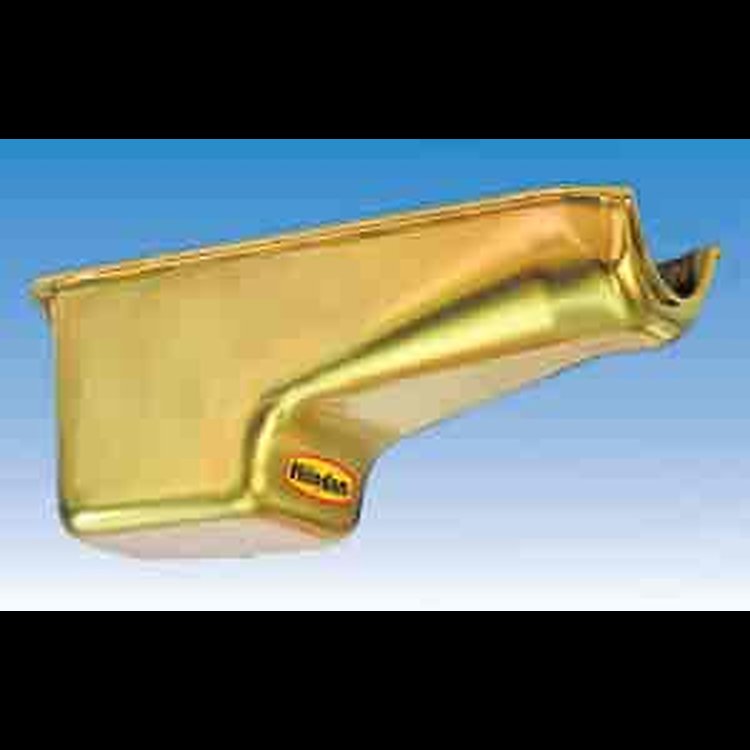

Off-Road Oil Pan Small Block Chevy 350-400 Up to 79
$31995
4 left in stock
Ships Today
Lowest Price GuaranteeChevy
- Off-Road Oil Pan
- Small Block Chevy 350-400 Up to 79
- 6 Quarts & Filter
- 8-1/2'' Deep Sump
This one-piece stamped pan features ultra straight pails (no gasket leaks) and has built-in horizontal baffle for oil control. Fits all normal 2 & 4WD chassis applications as well as all Chevy automotive chassis, except 1962-67 Nova. Dipstick on left side. 100% oil control is provided by this pan whether the truck is used for street or full-on, off-road racing. Pan capacity is 6 quarts plus filters, etc.
Use oil pump pickup 697-18314
Oil pump shaft 697-23050
Windage tray 697-32250 or 697-32100
Windage tray installation kit 697-81150
Dipstick 697-22000
Oil Pan Gasket 697-40100
1-Piece Pan Gasket 697-41000
Part TypeOil Pan
BrandMILODON
Package Height8.6
Package Width12.2
Package Length25.2
Weight10.4 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.75 in (95.25 mm)
Gaskets IncludedNo
Oil Pan Depth8.5 in (215.9 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutNo
Stroker ClearancedNo
Vendor Part Number30401
Package Qty1
Package TypeEA
