Vehicle Info Needed

MILODONPART NUMBER: 697-30570

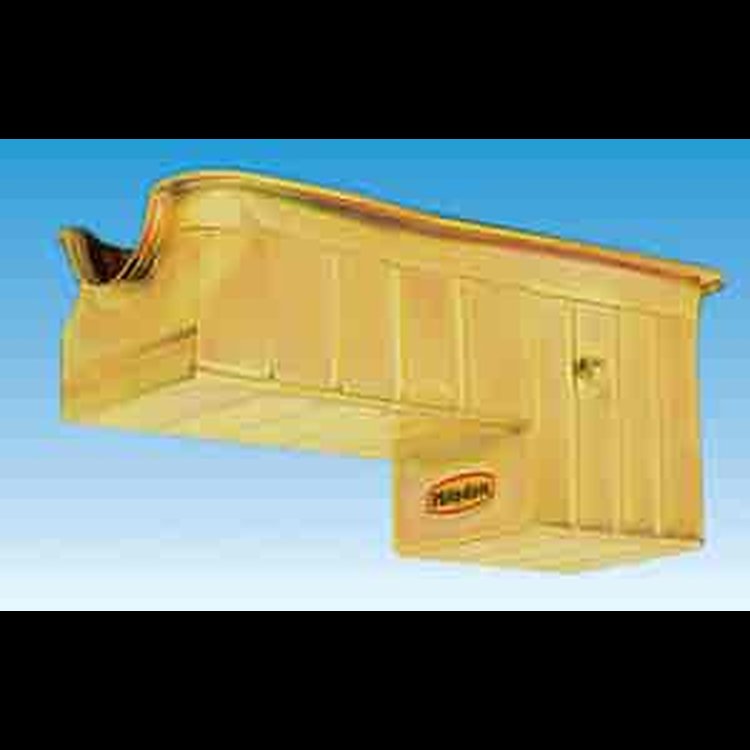

Off-Road Oil Pan Big Block Ford 429-460

Name: Off-Road Oil Pan Big Block Ford 429-460
Brand: MILODON
SKU: 697-30570
Price: 572.95 USD
Availability: InStock

^$572⁹⁵

Ships on Sep 04, 2026

Lowest Price Guarantee

Ford

Big Block Ford 429-460
4WD
Pickups & Broncos 78-Up
8 Quarts & Filter
10-3/4'' Deep Sump
Uses 689-M84D oil pump with bolt on pickup part number 697-18451.

Part TypeOil Pan

BrandMILODON

Package Height11.4

Package Width12.3

Package Length25.5

Weight13.7 PG

Part CategoryPerformance Parts

Oil Pan Capacity8 quarts

Hardware IncludedNo

Dipstick ProvisionYes

BaffledYes

Sump StyleWet

Pickup IncludedNo

Drain Plug Thread Size (In.)1/2-20

QuantitySold individually

Oil Pan FinishGold iridited

Oil Pan MaterialSteel

Maximum Stroke With Oe Rod4.5 in (114.3 mm)

Gaskets IncludedNo

Oil Pan Depth10.75 in (273.1 mm)

Rear Main Seal Style2-piece

Sump LocationRear

Crank Scraper IncludedNo

Windage Tray IncludedNo

Dipstick LocationDriver

Part FitmentSemi Universal

Kicked OutNo

Stroker ClearancedYes

Vendor Part Number30570

Package Qty1

Package TypeEA
