Vehicle Info NeededMILODONPART NUMBER: 697-30900

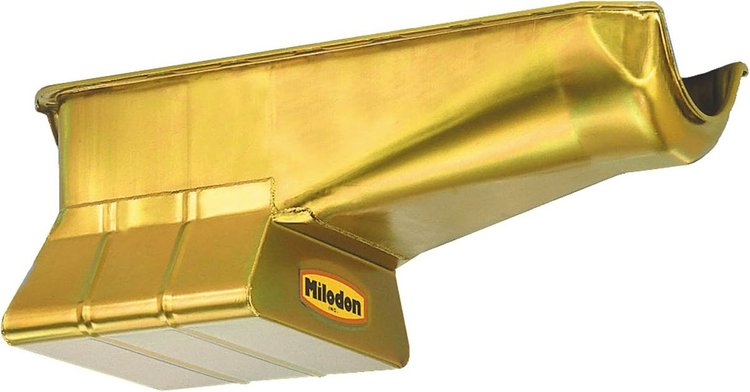

Small Block Chevy Oil Pan 1955-79 Small Block
$34695
4 left in stock
Ships Today
Lowest Price GuaranteeChevy
- Small Block Chevy Oil Pan
- 1955-79 Small Block
- Low Profile
- Left Hand Dipstick
- 7-Quart Capacity Plus Filter
- 8-1/4'' Deep Sump
The Low Profile 'triangulated' sump design that was originally developed by Milodon over two decades ago gives both adequate ground clearance, as well as sufficient oil capacity for any kind of high performance use. This pan is equally suited for use on the street or strip. It will fit all Chevy chassis, except 1962-67 Nova. Oil control baffles 100% subdue oil movement and provide increased horsepower.
Use oil pump pickup 697-18311 with stock Chevy, Melling 689-M55 pump or Milodon oil pump pickup 697-18314 with 697-18750 pump,
Oil pump shaft 697-23050,
Oil pan gasket 697-40100,
Rear pan baffle 697-32500
Windage tray 697-32100 (solid louvered tray) or 697-32250 (diamond mesh tray),
Windage tray install kit 697-81150,
Dipstick 697-22000.
Part TypeOil Pan
BrandMILODON
Package Height8.6
Package Width12.2
Package Length25.7
Weight11.05 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.75 in (95.25 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationDriver
Part FitmentSemi Universal
Kicked OutYes
Stroker ClearancedNo
Vendor Part Number30900
Package Qty1
Package TypeEA
